AON7702

AON7702

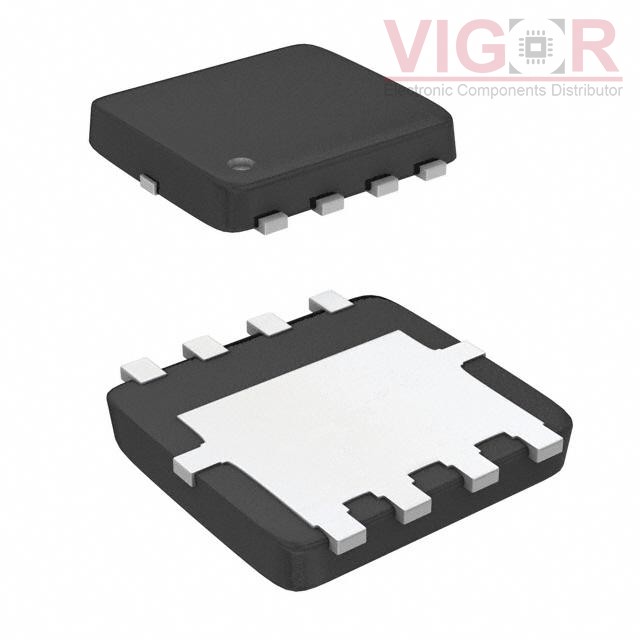

Image is for reference,
please contact us to get the real picture

Part No :

AON7702

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
MOSFET N-CH 30V 13.5A/36A 8DFN
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 21 - Jul 25 2025
DataSheet
AON7702 PDF
Availability
384 pieces
Unit Price
$0.49000

Current price of AON7702 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AON7702 Specifications
Type Description
Series:SRFET™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:13.5A (Ta), 36A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:10mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:48 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:4250 pF @ 15 V
FET Feature:Schottky Diode (Body)
Power Dissipation (Max):3.1W (Ta), 23W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-DFN (3x3)
Package / Case:8-PowerVDFN
