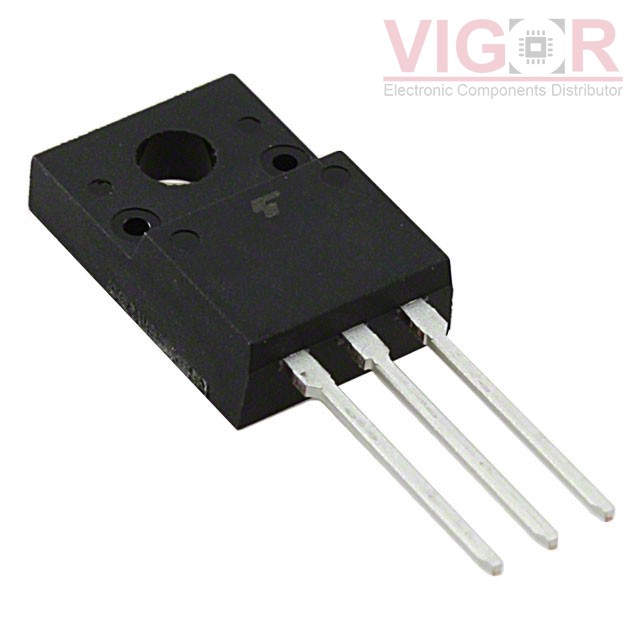

TK5A53D(STA4,Q,M)

Image is for reference,
please contact us to get the real picture

Part No :: TK5A53D(STA4,Q,M)

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N-CH 525V 5A TO220SIS

Catalog: Transistors - FETs, MOSFETs - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: TK5A53D(STA4,Q,M) PDF

Availability: 0 pieces

Unit Price: ~~$1.21960~~

Current price of TK5A53D(STA4,Q,M) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TK5A53D(STA4,Q,M) Specifications

Type	Description
Series:	π-MOSVII
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	525 V
Current - Continuous Drain (Id) @ 25°C:	5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1.5Ohm @ 2.5A, 10V
Vgs(th) (Max) @ Id:	4.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	11 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	540 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	35W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220SIS
Package / Case:	TO-220-3 Full Pack

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

PSMN6R0-25YLB,115

MOSFET N-CH 25V 73A LFPAK56

HOT

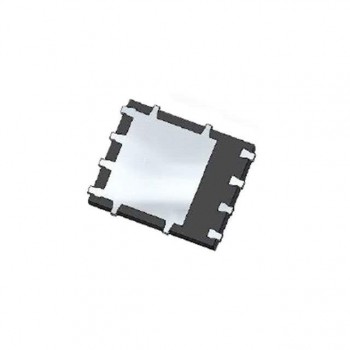

DMTH4007LPS-13

MOSFET N-CH 40V 15.5A PWRDI5060

HOT

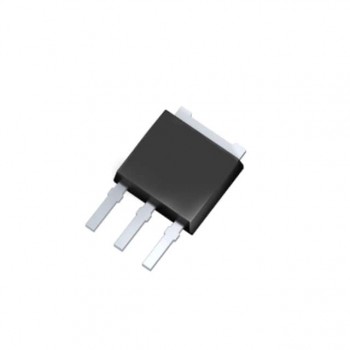

IPS60R400CEAKMA1
