TPC6113(TE85L,F,M)

TPC6113(TE85L,F,M)

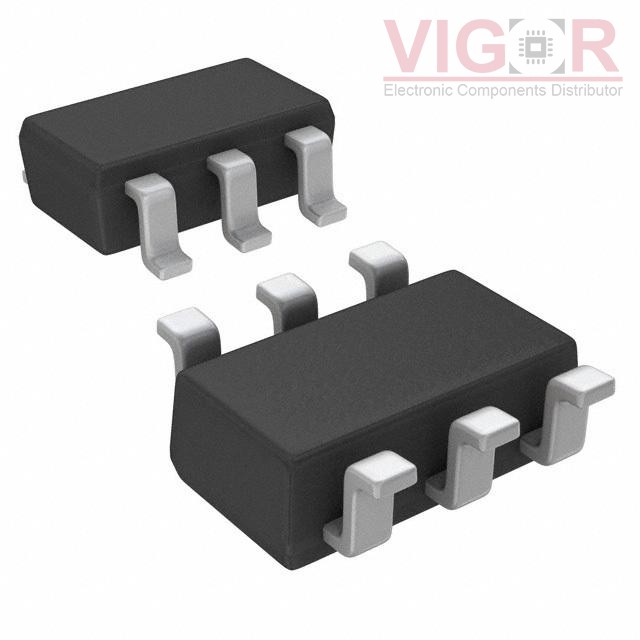

Image is for reference,
please contact us to get the real picture

Part No :

TPC6113(TE85L,F,M)

Manufacturer
Toshiba Electronic Devices and Storage Corporation
Description
MOSFET P-CH 20V 5A VS-6
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 09 - Jul 13 2025
DataSheet
TPC6113(TE85L,F,M) PDF
Availability
0 pieces
Unit Price
$0.25063

Current price of TPC6113(TE85L,F,M) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TPC6113(TE85L,F,M) Specifications
Type Description
Series:U-MOSVI
Package:Tape & Reel (TR)
Part Status:Active
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):2.5V, 4.5V
Rds On (Max) @ Id, Vgs:55mOhm @ 2.5A, 4.5V
Vgs(th) (Max) @ Id:1.2V @ 200µA
Gate Charge (Qg) (Max) @ Vgs:10 nC @ 5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:690 pF @ 10 V
FET Feature:-
Power Dissipation (Max):700mW (Ta)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:VS-6 (2.9x2.8)
Package / Case:SOT-23-6 Thin, TSOT-23-6
