PCP1403-TD-H

PCP1403-TD-H

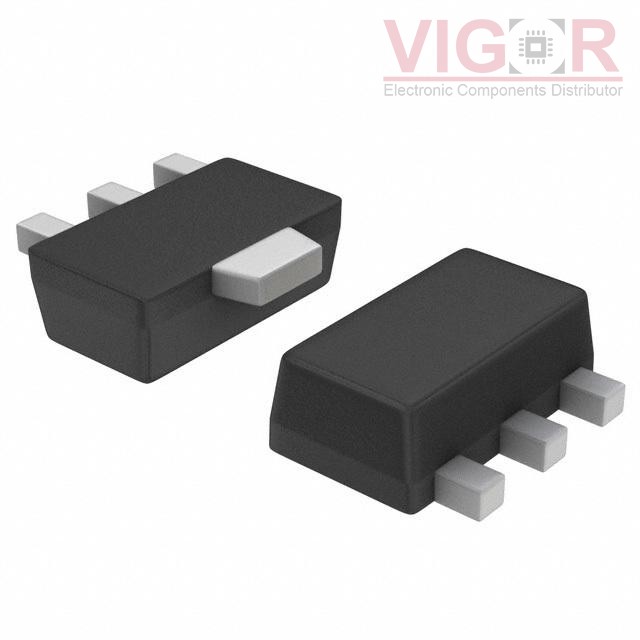

Image is for reference,
please contact us to get the real picture

Part No :

PCP1403-TD-H

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
MOSFET N-CH 60V 4.5A SOT89/PCP-1
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
PCP1403-TD-H PDF
Availability
837 pieces
Unit Price
$0.56000

Current price of PCP1403-TD-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PCP1403-TD-H Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4V, 10V
Rds On (Max) @ Id, Vgs:117mOhm @ 2A, 10V
Vgs(th) (Max) @ Id:2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:6.7 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:310 pF @ 20 V
FET Feature:-
Power Dissipation (Max):3.5W (Tc)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-89/PCP-1
Package / Case:TO-243AA
