PHD77NQ03T,118

PHD77NQ03T,118

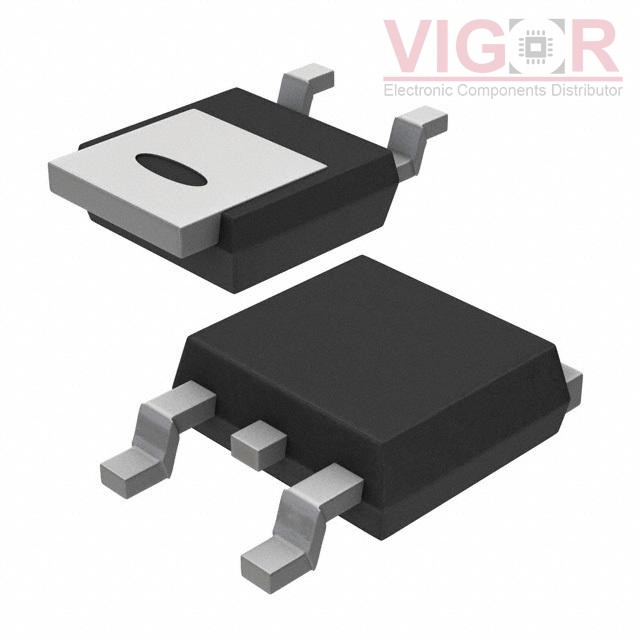

Image is for reference,
please contact us to get the real picture

Part No :

PHD77NQ03T,118

Manufacturer
NXP Semiconductors
Description
MOSFET N-CH 25V 75A DPAK
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
PHD77NQ03T,118 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of PHD77NQ03T,118 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PHD77NQ03T,118 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):25 V
Current - Continuous Drain (Id) @ 25°C:75A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:9.5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:3.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:17.1 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:860 pF @ 12 V
FET Feature:-
Power Dissipation (Max):107W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
