CZDM1003N BK

CZDM1003N BK

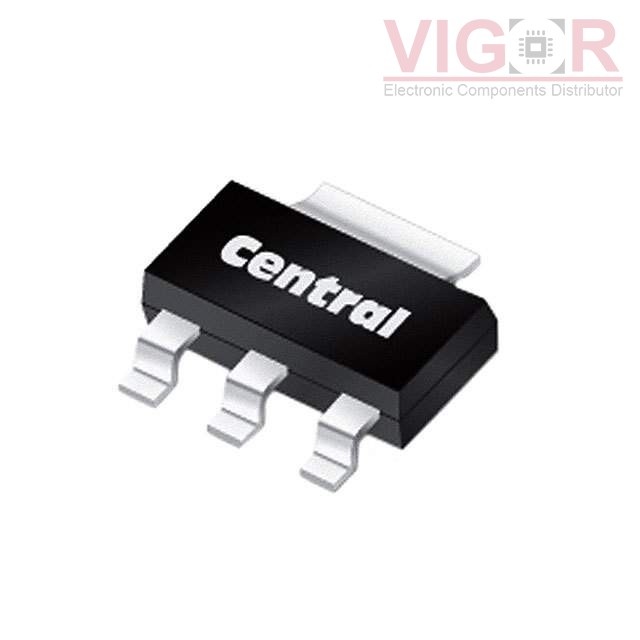

Image is for reference,
please contact us to get the real picture

Part No :

CZDM1003N BK

Manufacturer
Central Semiconductor
Description
MOSFET N-CH 100V 3A SOT-223
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
CZDM1003N BK PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of CZDM1003N BK is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CZDM1003N BK Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:150mOhm @ 2A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:15 nC @ 10 V
Vgs (Max):20V
Input Capacitance (Ciss) (Max) @ Vds:975 pF @ 25 V
FET Feature:-
Power Dissipation (Max):2W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-223
Package / Case:TO-261-4, TO-261AA
