SUP60N02-4M5P-E3

SUP60N02-4M5P-E3

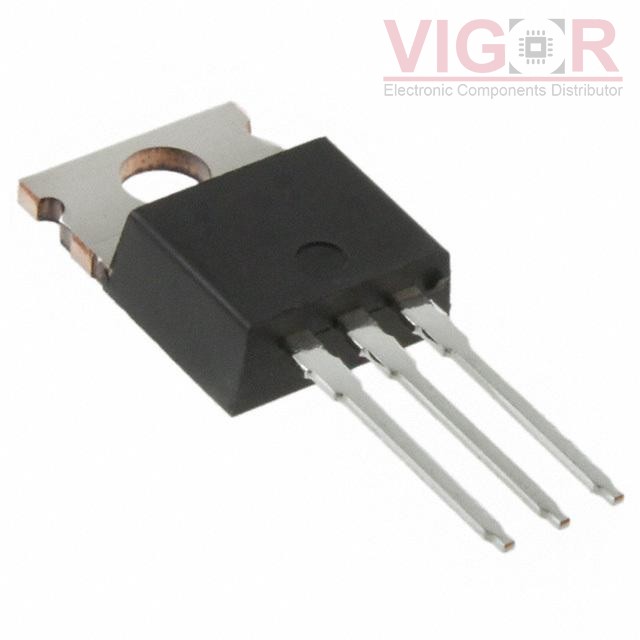

Image is for reference,
please contact us to get the real picture

Part No :

SUP60N02-4M5P-E3

Manufacturer
Vishay / Siliconix
Description
MOSFET N-CH 20V 60A TO220AB
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 14 - Aug 18 2025
DataSheet
SUP60N02-4M5P-E3 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of SUP60N02-4M5P-E3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SUP60N02-4M5P-E3 Specifications
Type Description
Series:TrenchFET®
Package:Tape & Reel (TR)
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:60A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:4.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:50 nC @ 4.5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:5950 pF @ 10 V
FET Feature:-
Power Dissipation (Max):3.75W (Ta), 120W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220AB
Package / Case:TO-220-3
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

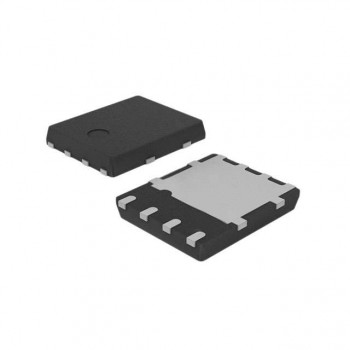

HOT STL12HN65M2

STL12HN65M2

MOSFET POWERFLAT HV
HOT BUK7528-55,127

BUK7528-55,127

MOSFET N-CH 55V 40A TO220AB

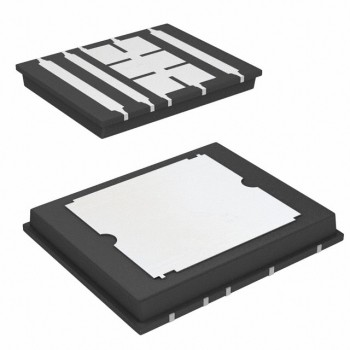

HOT SIE844DF-T1-E3
