2N7002PM,315

2N7002PM,315

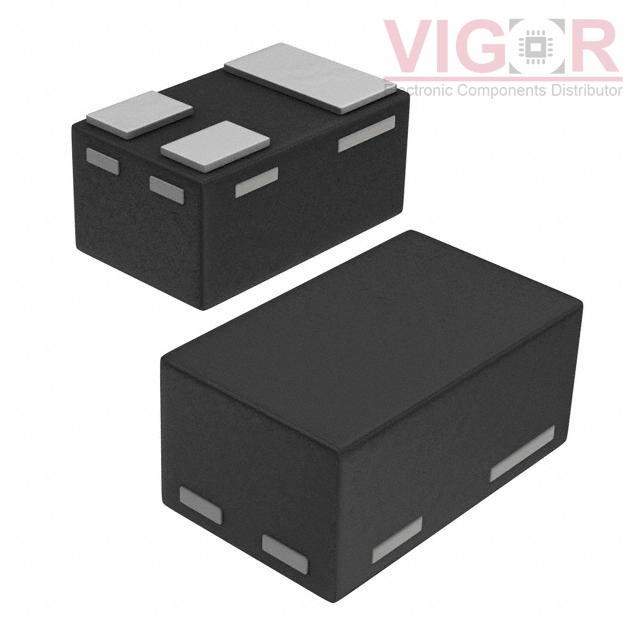

Image is for reference,
please contact us to get the real picture

Part No :

2N7002PM,315

Manufacturer
NXP Semiconductors
Description
MOSFET N-CH 60V 300MA DFN1006-3
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
2N7002PM,315 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 2N7002PM,315 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2N7002PM,315 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:300mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):5V, 10V
Rds On (Max) @ Id, Vgs:-
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:-
FET Feature:-
Power Dissipation (Max):250mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DFN1006-3
Package / Case:SC-101, SOT-883
