DF100R07W1H5FPB53BPSA2

DF100R07W1H5FPB53BPSA2

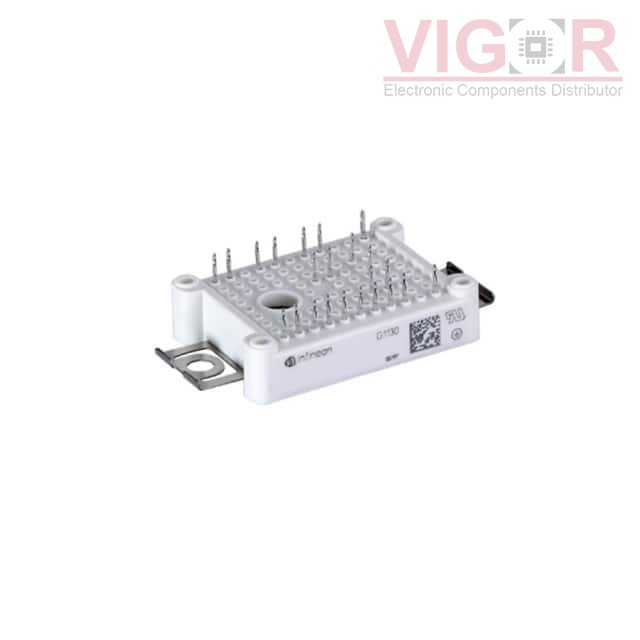

Image is for reference,
please contact us to get the real picture

Part No :

DF100R07W1H5FPB53BPSA2

Manufacturer
IR (Infineon Technologies)
Description
IGBT MOD 650V 40A 20MW
Catalog
Transistors - IGBTs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
DF100R07W1H5FPB53BPSA2 PDF
Availability
30 pieces
Unit Price
$61.03000

Current price of DF100R07W1H5FPB53BPSA2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF100R07W1H5FPB53BPSA2 Specifications
Type Description
Series:EasyPACK™
Package:Tray
Part Status:Active
IGBT Type:Trench Field Stop
Configuration:2 Independent
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):40 A
Power - Max:20 mW
Vce(on) (Max) @ Vge, Ic:1.55V @ 15V, 25A
Current - Collector Cutoff (Max):40 µA
Input Capacitance (Cies) @ Vce:2.8 nF @ 25 V
Input:Standard
NTC Thermistor:Yes
Operating Temperature:-40°C ~ 150°C
Mounting Type:Chassis Mount
Package / Case:Module
Supplier Device Package:Module
