APTGT50DDA120T3G

APTGT50DDA120T3G

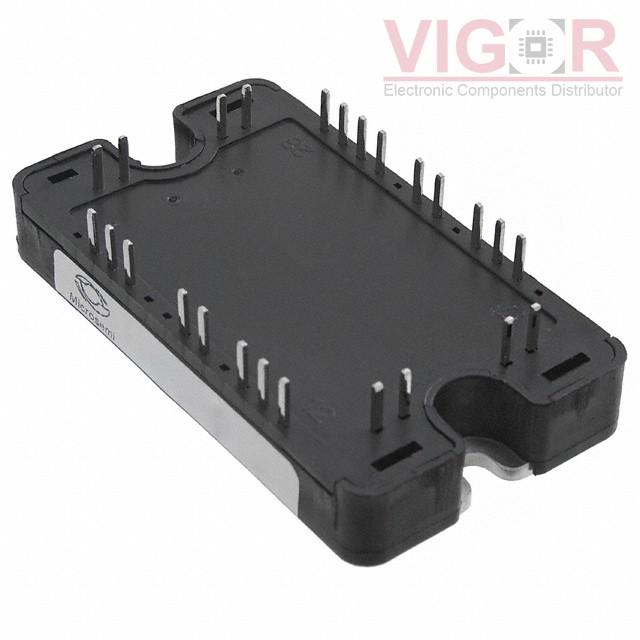

Image is for reference,
please contact us to get the real picture

Part No :

APTGT50DDA120T3G

Manufacturer
Roving Networks / Microchip Technology
Description
IGBT MODULE 1200V 75A 270W SP3
Catalog
Transistors - IGBTs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
APTGT50DDA120T3G PDF
Availability
0 pieces
Unit Price
$59.63063

Current price of APTGT50DDA120T3G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APTGT50DDA120T3G Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
IGBT Type:Trench Field Stop
Configuration:Dual Boost Chopper
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):75 A
Power - Max:270 W
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 50A
Current - Collector Cutoff (Max):250 µA
Input Capacitance (Cies) @ Vce:3.6 nF @ 25 V
Input:Standard
NTC Thermistor:Yes
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Chassis Mount
Package / Case:SP3
Supplier Device Package:SP3
