FS225R12KE3BOSA1

FS225R12KE3BOSA1

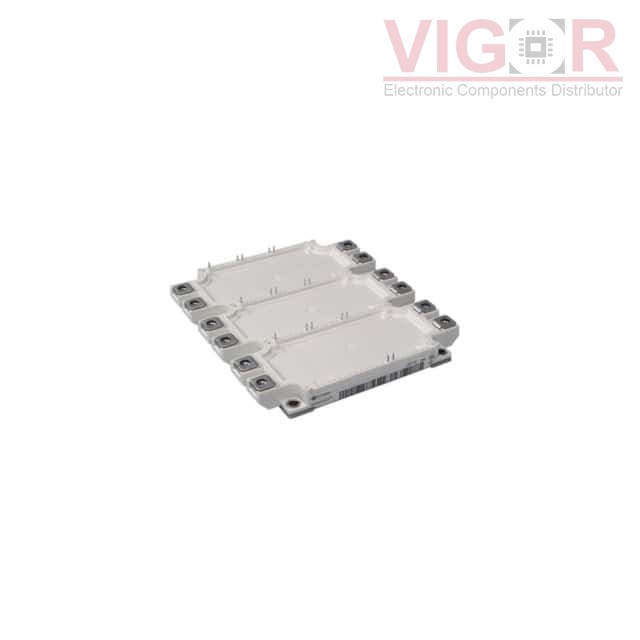

Image is for reference,
please contact us to get the real picture

Part No :

FS225R12KE3BOSA1

Manufacturer
IR (Infineon Technologies)
Description
IGBT MOD 1200V 325A 1150W
Catalog
Transistors - IGBTs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
FS225R12KE3BOSA1 PDF
Availability
0 pieces
Unit Price
$467.46000

Current price of FS225R12KE3BOSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FS225R12KE3BOSA1 Specifications
Type Description
Series:EconoPACK™+
Package:Tray
Part Status:Not For New Designs
IGBT Type:Trench Field Stop
Configuration:Full Bridge
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):325 A
Power - Max:1150 W
Vce(on) (Max) @ Vge, Ic:2.15V @15V, 225A
Current - Collector Cutoff (Max):5 mA
Input Capacitance (Cies) @ Vce:16 nF @ 25 V
Input:Standard
NTC Thermistor:Yes
Operating Temperature:-40°C ~ 125°C
Mounting Type:Chassis Mount
Package / Case:Module
Supplier Device Package:Module
