VS-CPV364M4KPBF

VS-CPV364M4KPBF

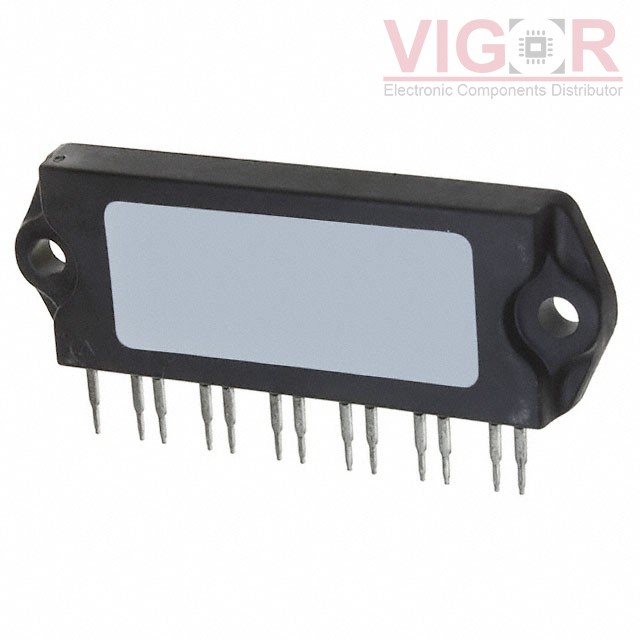

Image is for reference,
please contact us to get the real picture

Part No :

VS-CPV364M4KPBF

Manufacturer
Vishay General Semiconductor – Diodes Division
Description
IGBT MODULE 600V 24A 63W IMS-2
Catalog
Transistors - IGBTs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
VS-CPV364M4KPBF PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of VS-CPV364M4KPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

VS-CPV364M4KPBF Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
IGBT Type:-
Configuration:Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):24 A
Power - Max:63 W
Vce(on) (Max) @ Vge, Ic:1.8V @ 15V, 24A
Current - Collector Cutoff (Max):250 µA
Input Capacitance (Cies) @ Vce:1.6 nF @ 30 V
Input:Standard
NTC Thermistor:No
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:19-SIP (13 Leads), IMS-2
Supplier Device Package:IMS-2
