APTGF100DA120T1G

APTGF100DA120T1G

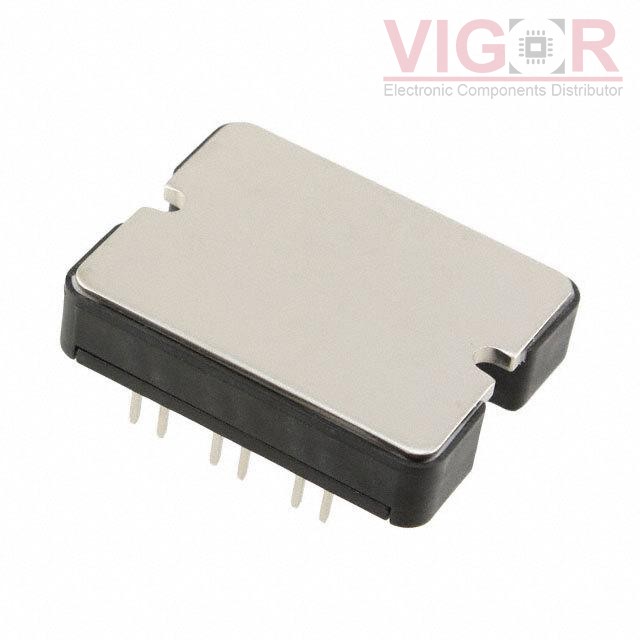

Image is for reference,
please contact us to get the real picture

Part No :

APTGF100DA120T1G

Manufacturer
Roving Networks / Microchip Technology
Description
IGBT MODULE 1200V 130A 735W SP1
Catalog
Transistors - IGBTs - Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
APTGF100DA120T1G PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of APTGF100DA120T1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APTGF100DA120T1G Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
IGBT Type:NPT
Configuration:Single
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):130 A
Power - Max:735 W
Vce(on) (Max) @ Vge, Ic:3.7V @ 15V, 100A
Current - Collector Cutoff (Max):250 µA
Input Capacitance (Cies) @ Vce:6.5 nF @ 25 V
Input:Standard
NTC Thermistor:Yes
Operating Temperature:-
Mounting Type:Chassis Mount
Package / Case:SP1
Supplier Device Package:SP1
