IKY50N120CH3XKSA1

IKY50N120CH3XKSA1

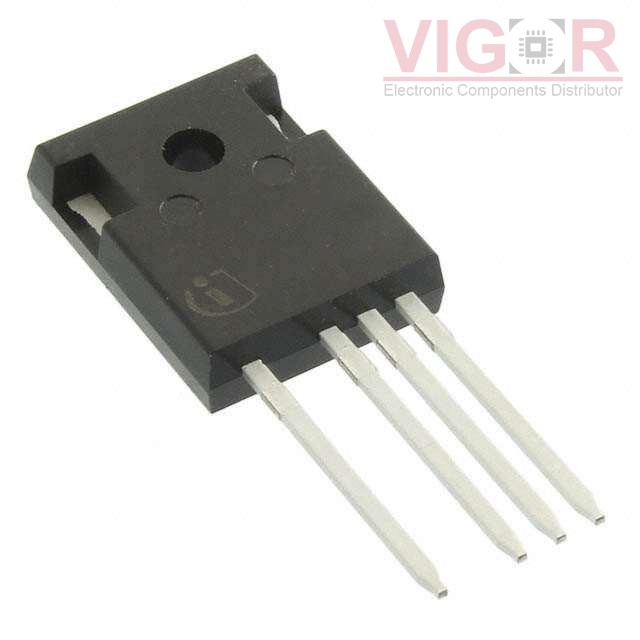

Image is for reference,
please contact us to get the real picture

Part No :

IKY50N120CH3XKSA1

Manufacturer
IR (Infineon Technologies)
Description
IGBT 1200V 100A TO247-4
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
IKY50N120CH3XKSA1 PDF
Availability
239 pieces
Unit Price
$13.64000

Current price of IKY50N120CH3XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IKY50N120CH3XKSA1 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):100 A
Current - Collector Pulsed (Icm):200 A
Vce(on) (Max) @ Vge, Ic:2.35V @ 15V, 50A
Power - Max:652 W
Switching Energy:2.3mJ (on), 1.9mJ (off)
Input Type:Standard
Gate Charge:235 nC
Td (on/off) @ 25°C:32ns/296ns
Test Condition:600V, 50A, 10Ohm, 15V
Reverse Recovery Time (trr):255 ns
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-4
Supplier Device Package:PG-TO247-4
