IXYN110N120A4

IXYN110N120A4

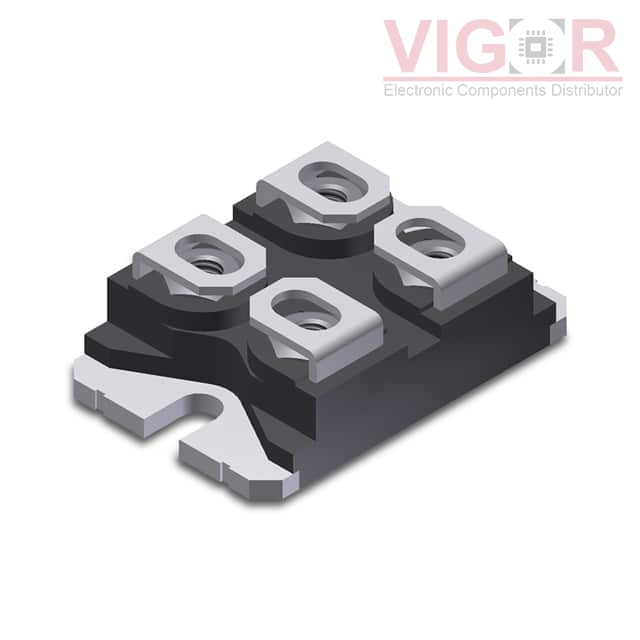

Image is for reference,
please contact us to get the real picture

Part No :

IXYN110N120A4

Manufacturer
Wickmann / Littelfuse
Description
IGBT 1200V 110A GNX4 XPT SOT227B
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
IXYN110N120A4 PDF
Availability
800 pieces
Unit Price
$39.70000

Current price of IXYN110N120A4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXYN110N120A4 Specifications
Type Description
Series:XPT™, GenX4™
Package:Tube
Part Status:Active
IGBT Type:PT
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):275 A
Current - Collector Pulsed (Icm):950 A
Vce(on) (Max) @ Vge, Ic:1.8V @ 15V, 110A
Power - Max:830 W
Switching Energy:2.5mJ (on), 8.4mJ (off)
Input Type:Standard
Gate Charge:305 nC
Td (on/off) @ 25°C:42ns/550ns
Test Condition:600V, 50A, 2Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Chassis Mount
Package / Case:SOT-227-4, miniBLOC
Supplier Device Package:SOT-227B
