AOK60B60D1

AOK60B60D1

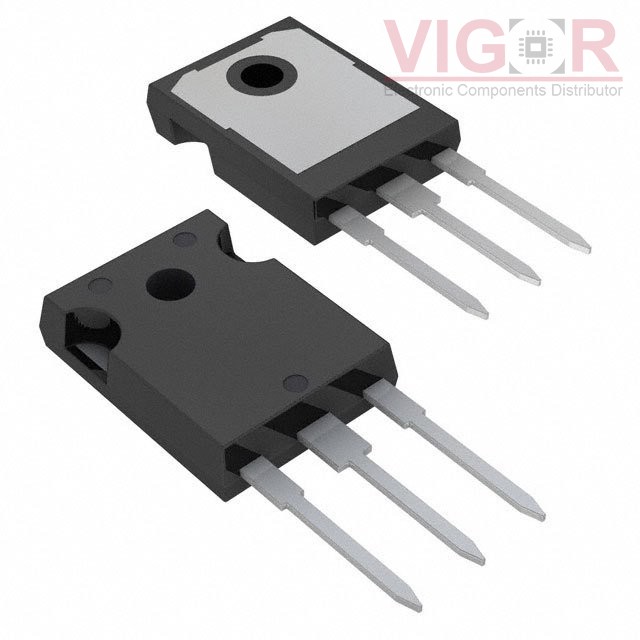

Image is for reference,
please contact us to get the real picture

Part No :

AOK60B60D1

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
IGBT 600V 120A 417W TO247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
AOK60B60D1 PDF
Availability
0 pieces
Unit Price
$4.33971

Current price of AOK60B60D1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AOK60B60D1 Specifications
Type Description
Series:Alpha IGBT™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):120 A
Current - Collector Pulsed (Icm):210 A
Vce(on) (Max) @ Vge, Ic:2.4V @ 15V, 60A
Power - Max:417 W
Switching Energy:3.1mJ (on), 730µJ (off)
Input Type:Standard
Gate Charge:75 nC
Td (on/off) @ 25°C:32ns/74ns
Test Condition:400V, 60A, 5Ohm, 15V
Reverse Recovery Time (trr):137 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247
