RGCL80TK60DGC11

RGCL80TK60DGC11

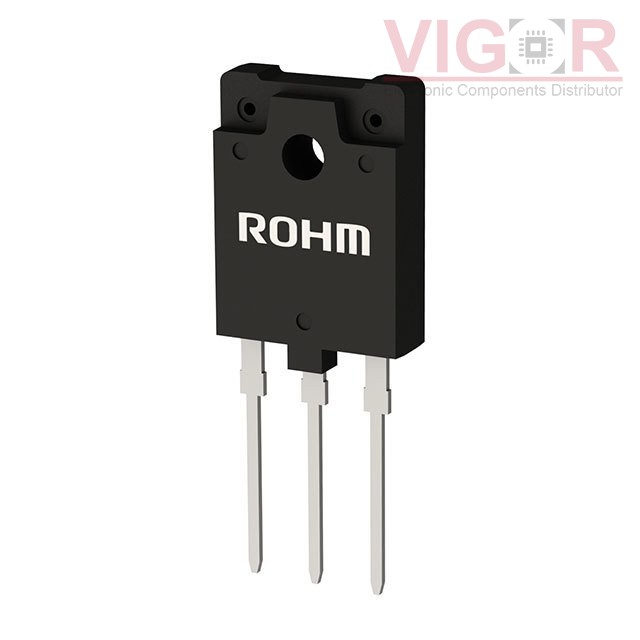

Image is for reference,
please contact us to get the real picture

Part No :

RGCL80TK60DGC11

Manufacturer
ROHM Semiconductor
Description
IGBT
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
RGCL80TK60DGC11 PDF
Availability
450 pieces
Unit Price
$5.01000

Current price of RGCL80TK60DGC11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RGCL80TK60DGC11 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):35 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:1.8V @ 15V, 40A
Power - Max:57 W
Switching Energy:1.11mJ (on), 1.68mJ (off)
Input Type:Standard
Gate Charge:98 nC
Td (on/off) @ 25°C:53ns/227ns
Test Condition:400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):58 ns
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3PFM, SC-93-3
Supplier Device Package:TO-3PFM
