STGB35N35LZ-1

STGB35N35LZ-1

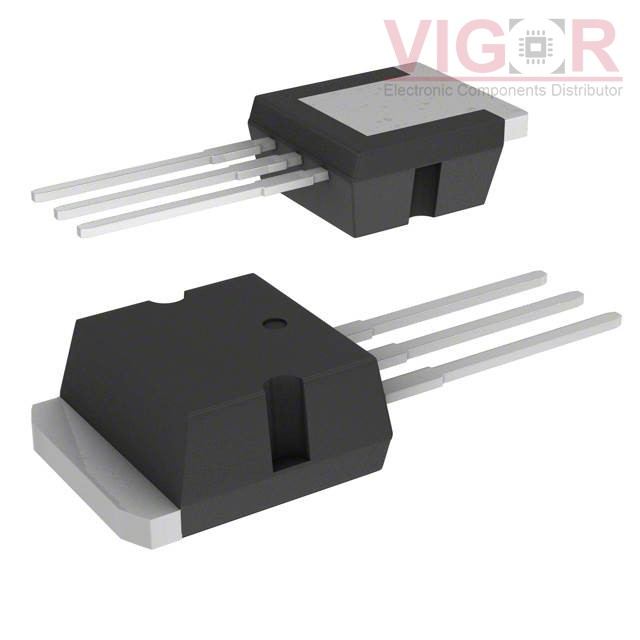

Image is for reference,
please contact us to get the real picture

Part No :

STGB35N35LZ-1

Manufacturer
STMicroelectronics
Description
IGBT 345V 40A 176W I2PAK
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
STGB35N35LZ-1 PDF
Availability
0 pieces
Unit Price
$2.60000

Current price of STGB35N35LZ-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGB35N35LZ-1 Specifications
Type Description
Series:PowerMESH™
Package:Tube
Part Status:Obsolete
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):345 V
Current - Collector (Ic) (Max):40 A
Current - Collector Pulsed (Icm):80 A
Vce(on) (Max) @ Vge, Ic:1.7V @ 4.5V, 15A
Power - Max:176 W
Switching Energy:-
Input Type:Logic
Gate Charge:49 nC
Td (on/off) @ 25°C:1.1µs/26.5µs
Test Condition:300V, 15A, 5V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package:I2PAK (TO-262)
