IKFW90N60EH3XKSA1

IKFW90N60EH3XKSA1

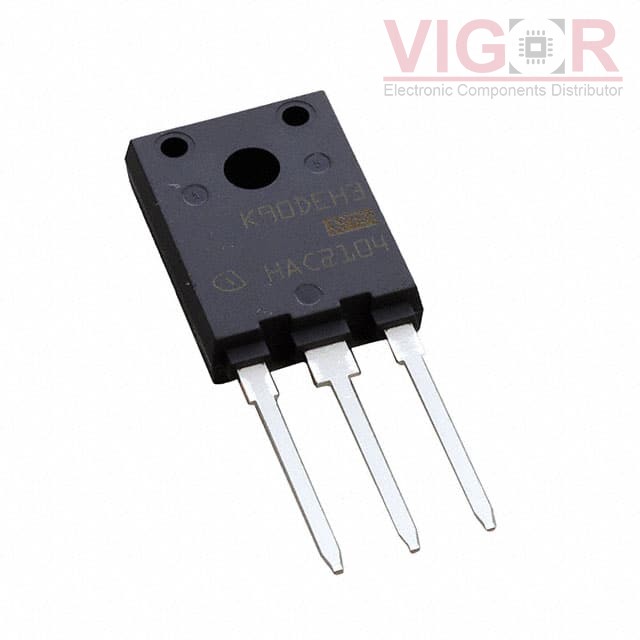

Image is for reference,
please contact us to get the real picture

Part No :

IKFW90N60EH3XKSA1

Manufacturer
IR (Infineon Technologies)
Description
INDUSTRY 14
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
IKFW90N60EH3XKSA1 PDF
Availability
280 pieces
Unit Price
$9.32000

Current price of IKFW90N60EH3XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IKFW90N60EH3XKSA1 Specifications
Type Description
Series:TrenchStop™
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):77 A
Current - Collector Pulsed (Icm):300 A
Vce(on) (Max) @ Vge, Ic:2.3V @ 15V, 75A
Power - Max:178 W
Switching Energy:2.65mJ (on), 1.3mJ (off)
Input Type:Standard
Gate Charge:440 nC
Td (on/off) @ 25°C:32ns/210ns
Test Condition:400V, 75A, 5Ohm, 15V
Reverse Recovery Time (trr):107 ns
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:PG-TO247-3-AI
