MIW40N120-BP

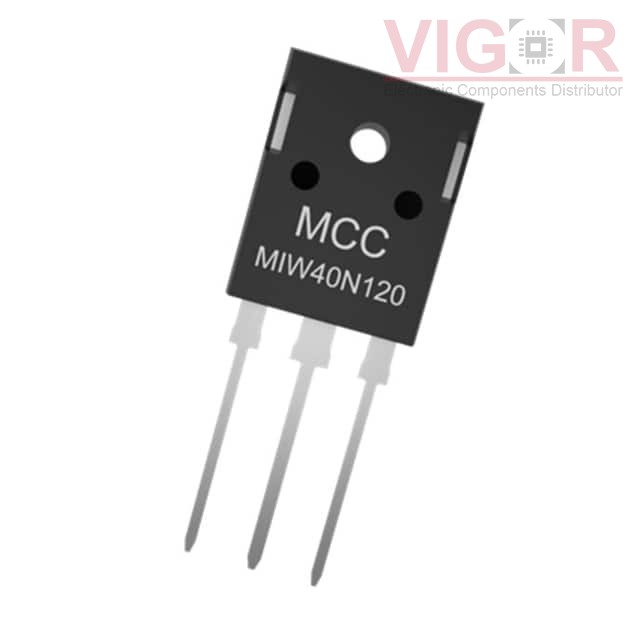

Image is for reference,
please contact us to get the real picture

Part No :

MIW40N120-BP

Manufacturer
Micro Commercial Components (MCC)
Description
IGBT 1200V 40A TO-247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
MIW40N120-BP PDF
Availability
360 pieces
Unit Price
$5.28000

Current price of MIW40N120-BP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:2.4V @ 15V, 40A
Power - Max:277 W
Switching Energy:3.3mJ (on), 1.4mJ (off)
Input Type:Standard
Gate Charge:239 nC
Td (on/off) @ 25°C:62ns/265ns
Test Condition:600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):80 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247
