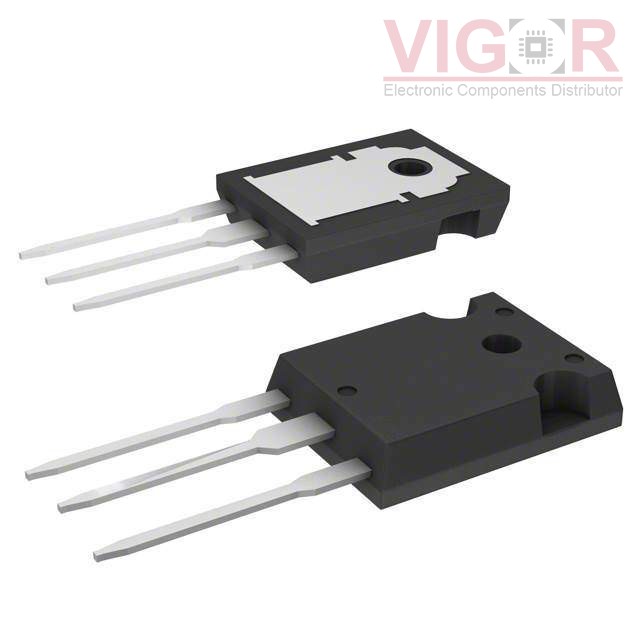

STGW8M120DF3

STGW8M120DF3

Image is for reference,
please contact us to get the real picture

Part No :

STGW8M120DF3

Manufacturer
STMicroelectronics
Description
TRENCH GATE FIELD-STOP IGBT M SE
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
STGW8M120DF3 PDF
Availability
582 pieces
Unit Price
$3.53000

Current price of STGW8M120DF3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGW8M120DF3 Specifications
Type Description
Series:M
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):16 A
Current - Collector Pulsed (Icm):32 A
Vce(on) (Max) @ Vge, Ic:2.3V @ 15V, 8A
Power - Max:167 W
Switching Energy:390µJ (on), 370µJ (Off)
Input Type:Standard
Gate Charge:32 nC
Td (on/off) @ 25°C:20ns/126ns
Test Condition:600V, 8A, 33Ohm, 15V
Reverse Recovery Time (trr):103 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247-3
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products

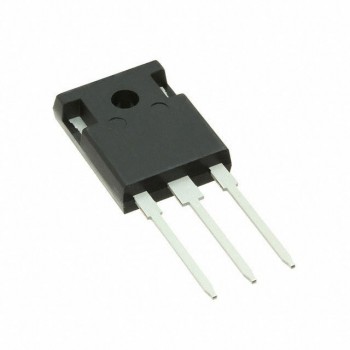

HOT IGW40N120H3FKSA1

IGW40N120H3FKSA1

IGBT 1200V 80A 483W TO247-3

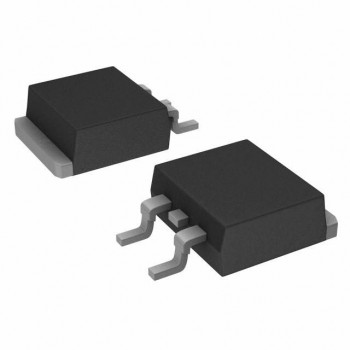

HOT SGB10N60A

SGB10N60A

IGBT, 20A, 600V, N-CHANNEL

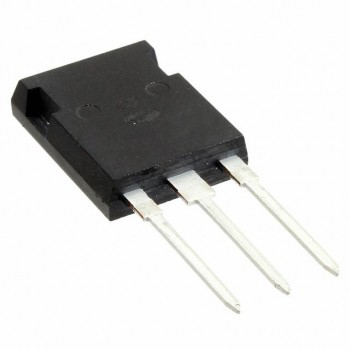

HOT APT25GN120BG
