IKFW60N65ES5XKSA1

IKFW60N65ES5XKSA1

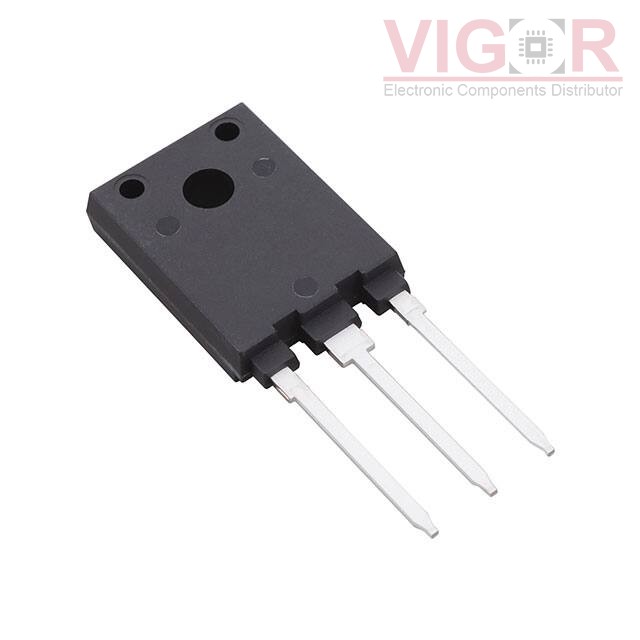

Image is for reference,
please contact us to get the real picture

Part No :

IKFW60N65ES5XKSA1

Manufacturer
IR (Infineon Technologies)
Description
IKFW60N65ES5XKSA1
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
IKFW60N65ES5XKSA1 PDF
Availability
190 pieces
Unit Price
$5.93000

Current price of IKFW60N65ES5XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IKFW60N65ES5XKSA1 Specifications
Type Description
Series:Trenchstop™ 5
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):77 A
Current - Collector Pulsed (Icm):200 A
Vce(on) (Max) @ Vge, Ic:1.7V @ 15V, 50A
Power - Max:138 W
Switching Energy:1.23mJ (on), 550µJ (off)
Input Type:Standard
Gate Charge:120 nC
Td (on/off) @ 25°C:20ns/127ns
Test Condition:400V, 50A, 8.2Ohm, 15V
Reverse Recovery Time (trr):77 ns
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:PG-HSIP247-3-2
