APT150GN60LDQ4G

APT150GN60LDQ4G

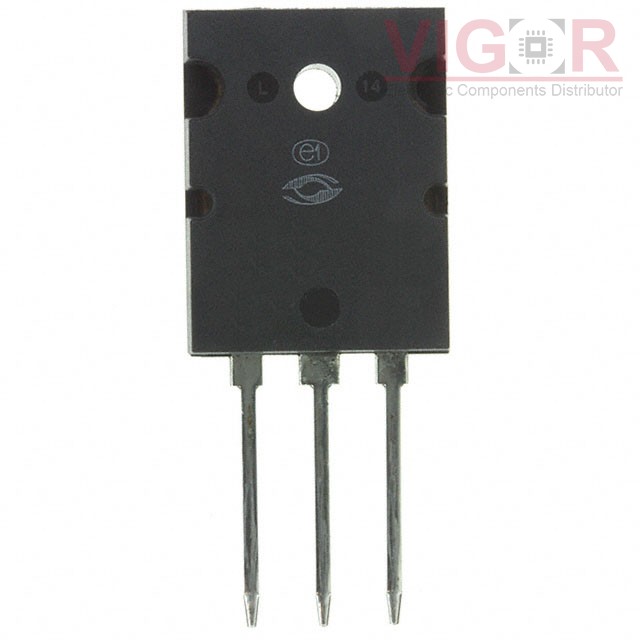

Image is for reference,
please contact us to get the real picture

Part No :

APT150GN60LDQ4G

Manufacturer
Roving Networks / Microchip Technology
Description
IGBT 600V 220A 536W TO-264L
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
APT150GN60LDQ4G PDF
Availability
0 pieces
Unit Price
$21.05000

Current price of APT150GN60LDQ4G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APT150GN60LDQ4G Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):220 A
Current - Collector Pulsed (Icm):450 A
Vce(on) (Max) @ Vge, Ic:1.85V @ 15V, 150A
Power - Max:536 W
Switching Energy:8.81mJ (on), 4.295mJ (off)
Input Type:Standard
Gate Charge:970 nC
Td (on/off) @ 25°C:44ns/430ns
Test Condition:400V, 150A, 1Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-264-3, TO-264AA
Supplier Device Package:TO-264 [L]
