STGW40NC60V

STGW40NC60V

Image is for reference,
please contact us to get the real picture

Part No :

STGW40NC60V

Manufacturer
STMicroelectronics
Description
IGBT 600V 80A 260W TO247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
STGW40NC60V PDF
Availability
0 pieces
Unit Price
$7.87000

Current price of STGW40NC60V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGW40NC60V Specifications
Type Description
Series:PowerMESH™
Package:Tube
Part Status:Obsolete
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):200 A
Vce(on) (Max) @ Vge, Ic:2.5V @ 15V, 40A
Power - Max:260 W
Switching Energy:330µJ (on), 720µJ (off)
Input Type:Standard
Gate Charge:214 nC
Td (on/off) @ 25°C:43ns/140ns
Test Condition:390V, 40A, 3.3Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247-3
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IHW30N120R3FKSA1

IHW30N120R3FKSA1

REVERSE CONDUCTING IGBT W/MONOLT

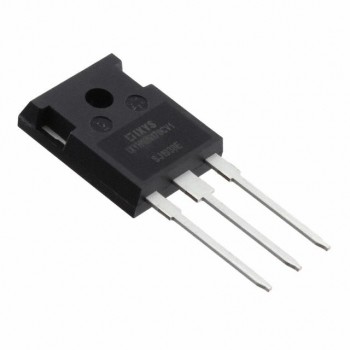

HOT IXYH16N170CV1

IXYH16N170CV1

IGBT 1.7KV 40A TO247

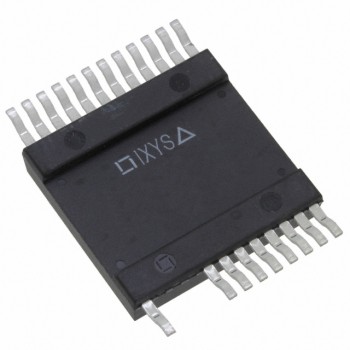

HOT MMIX1X200N60B3H1
