STGB5H60DF

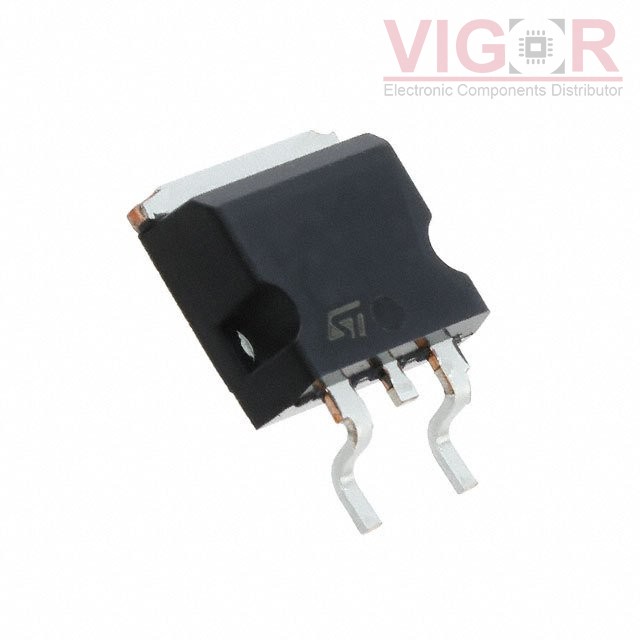

Image is for reference,
please contact us to get the real picture

Part No :: STGB5H60DF

Manufacturer: STMicroelectronics

Description: TRENCH GATE FIELD-STOP IGBT, H S

Catalog: Transistors - IGBTs - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 16 - Aug 20 2025

DataSheet: STGB5H60DF PDF

Availability: 0 pieces

Unit Price: ~~$1.23000~~

Current price of STGB5H60DF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGB5H60DF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	10 A
Current - Collector Pulsed (Icm):	20 A
Vce(on) (Max) @ Vge, Ic:	1.95V @ 15V, 5A
Power - Max:	88 W
Switching Energy:	56µJ (on), 78.5µJ (off)
Input Type:	Standard
Gate Charge:	43 nC
Td (on/off) @ 25°C:	30ns/140ns
Test Condition:	400V, 5A, 47Ohm, 15V
Reverse Recovery Time (trr):	134.5 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK
