FGH75T65SQDTL4

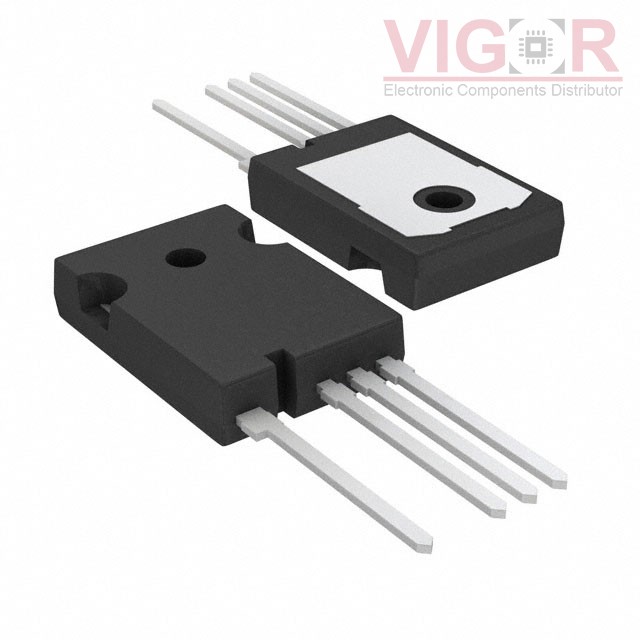

Image is for reference,
please contact us to get the real picture

Part No :: FGH75T65SQDTL4

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: 650V FS4 TRENCH IGBT

Catalog: Transistors - IGBTs - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 17 - Aug 21 2025

DataSheet: FGH75T65SQDTL4 PDF

Availability: 343 pieces

Unit Price: ~~$6.96000~~

Current price of FGH75T65SQDTL4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FGH75T65SQDTL4 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Last Time Buy
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	150 A
Current - Collector Pulsed (Icm):	300 A
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 75A
Power - Max:	-
Switching Energy:	307µJ (on), 266µJ (off)
Input Type:	Standard
Gate Charge:	128 nC
Td (on/off) @ 25°C:	44ns/276ns
Test Condition:	400V, 18.8A, 15Ohm, 15V
Reverse Recovery Time (trr):	76 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-4
Supplier Device Package:	TO-247

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
