RGTH80TS65DGC11

RGTH80TS65DGC11

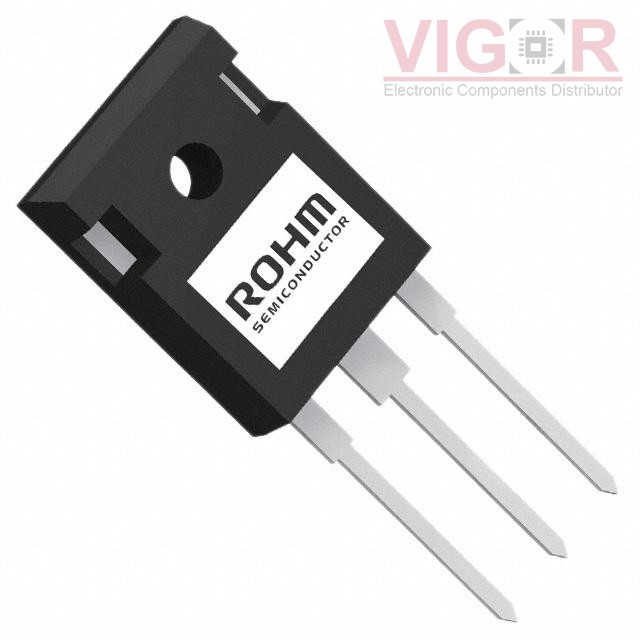

Image is for reference,
please contact us to get the real picture

Part No :

RGTH80TS65DGC11

Manufacturer
ROHM Semiconductor
Description
IGBT 650V 70A 234W TO-247N
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
RGTH80TS65DGC11 PDF
Availability
0 pieces
Unit Price
$3.88000

Current price of RGTH80TS65DGC11 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RGTH80TS65DGC11 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):70 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 40A
Power - Max:234 W
Switching Energy:-
Input Type:Standard
Gate Charge:79 nC
Td (on/off) @ 25°C:34ns/120ns
Test Condition:400V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):58 ns
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247N
