MGD623N

MGD623N

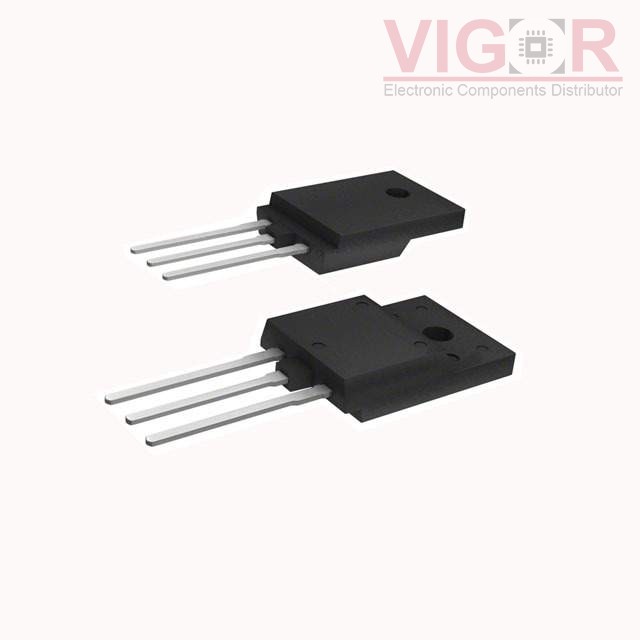

Image is for reference,
please contact us to get the real picture

Part No :

MGD623N

Manufacturer
Sanken Electric Co., Ltd.
Description
IGBT 600V 50A 150W TO3P
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 21 - Aug 25 2025
DataSheet
MGD623N PDF
Availability
0 pieces
Unit Price
$3.00892

Current price of MGD623N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MGD623N Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):50 A
Current - Collector Pulsed (Icm):100 A
Vce(on) (Max) @ Vge, Ic:2.3V @ 15V, 50A
Power - Max:150 W
Switching Energy:-
Input Type:Standard
Gate Charge:-
Td (on/off) @ 25°C:75ns/300ns
Test Condition:300V, 50A, 39Ohm, 15V
Reverse Recovery Time (trr):300 ns
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3 Full Pack
Supplier Device Package:TO-3P
