STGW60H65DFB-4

STGW60H65DFB-4

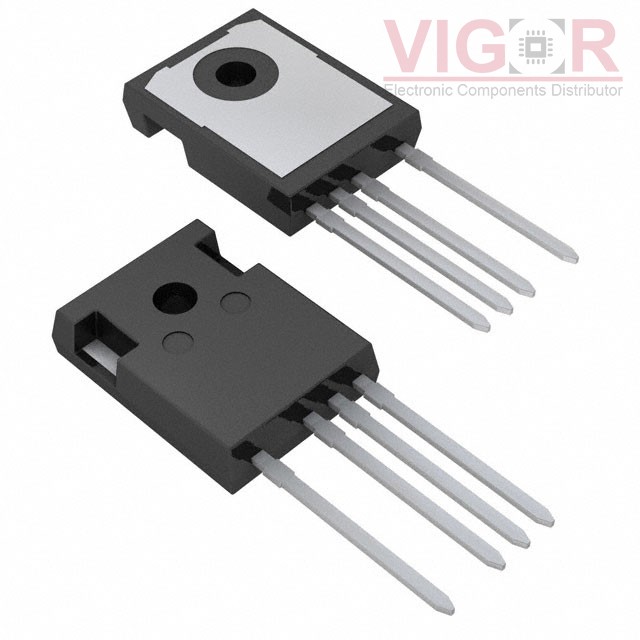

Image is for reference,
please contact us to get the real picture

Part No :

STGW60H65DFB-4

Manufacturer
STMicroelectronics
Description
IGBT
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
STGW60H65DFB-4 PDF
Availability
0 pieces
Unit Price
$3.69517

Current price of STGW60H65DFB-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGW60H65DFB-4 Specifications
Type Description
Series:HB
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):240 A
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 60A
Power - Max:375 W
Switching Energy:346µJ (on), 1.161mJ (off)
Input Type:Standard
Gate Charge:306 nC
Td (on/off) @ 25°C:65ns/261ns
Test Condition:400V, 60A, 10Ohm, 15V
Reverse Recovery Time (trr):60 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-4
Supplier Device Package:TO-247-4L
