STGWA25H120DF2

STGWA25H120DF2

Image is for reference,
please contact us to get the real picture

Part No :

STGWA25H120DF2

Manufacturer
STMicroelectronics
Description
IGBT HB 1200V 25A HS TO247-3
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
STGWA25H120DF2 PDF
Availability
470 pieces
Unit Price
$5.97000

Current price of STGWA25H120DF2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGWA25H120DF2 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):50 A
Current - Collector Pulsed (Icm):100 A
Vce(on) (Max) @ Vge, Ic:2.6V @ 15V, 25A
Power - Max:375 W
Switching Energy:600µJ (on), 700µJ (off)
Input Type:Standard
Gate Charge:100 nC
Td (on/off) @ 25°C:29ns/130ns
Test Condition:600V, 25A, 10Ohm, 15V
Reverse Recovery Time (trr):303 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247-3
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IKW50N65ES5XKSA1

IKW50N65ES5XKSA1

IGBT TRENCH 650V 80A TO247-3

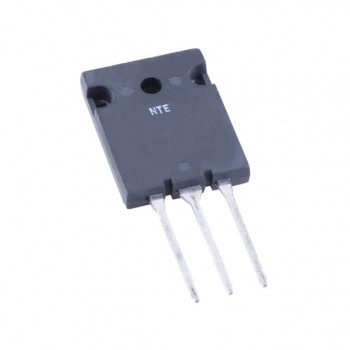

HOT NTE3323
