STGB20N40LZ

STGB20N40LZ

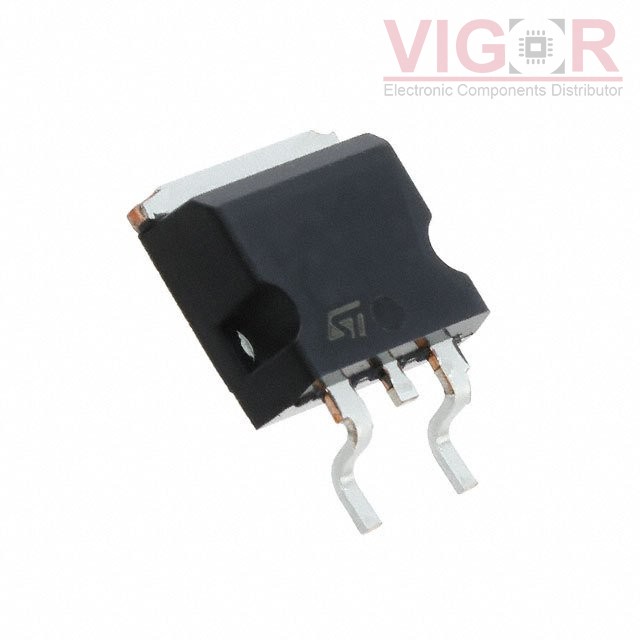

Image is for reference,
please contact us to get the real picture

Part No :

STGB20N40LZ

Manufacturer
STMicroelectronics
Description
IGBT 390V 25A 150W D2PAK
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
STGB20N40LZ PDF
Availability
0 pieces
Unit Price
$2.43000

Current price of STGB20N40LZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGB20N40LZ Specifications
Type Description
Series:Automotive, AEC-Q101, PowerMESH™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):390 V
Current - Collector (Ic) (Max):25 A
Current - Collector Pulsed (Icm):40 A
Vce(on) (Max) @ Vge, Ic:1.6V @ 4V, 6A
Power - Max:150 W
Switching Energy:-
Input Type:Logic
Gate Charge:24 nC
Td (on/off) @ 25°C:700ns/4.3µs
Test Condition:300V, 10A, 1kOhm, 5V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:TO-263 (D²Pak)
