IXYA20N120A4HV

IXYA20N120A4HV

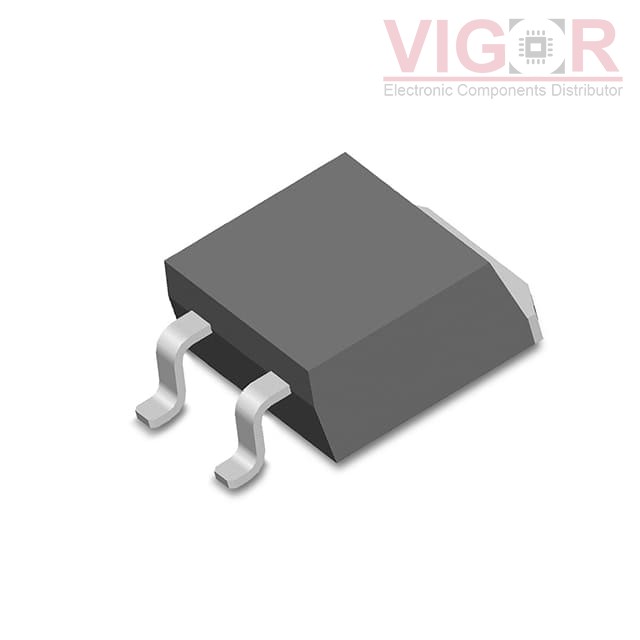

Image is for reference,
please contact us to get the real picture

Part No :

IXYA20N120A4HV

Manufacturer
Wickmann / Littelfuse
Description
DISC IGBT XPT-GENX4 TO-263D2
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
IXYA20N120A4HV PDF
Availability
300550 pieces
Unit Price
$8.77000

Current price of IXYA20N120A4HV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXYA20N120A4HV Specifications
Type Description
Series:GenX4™, XPT™
Package:Tube
Part Status:Active
IGBT Type:PT
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):135 A
Vce(on) (Max) @ Vge, Ic:1.9V @ 15V, 20A
Power - Max:375 W
Switching Energy:3.6mJ (on), 2.75mJ (off)
Input Type:Standard
Gate Charge:46 nC
Td (on/off) @ 25°C:12ns/275ns
Test Condition:800mV, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):54 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:TO-263HV
