IKQ75N120CS6XKSA1

IKQ75N120CS6XKSA1

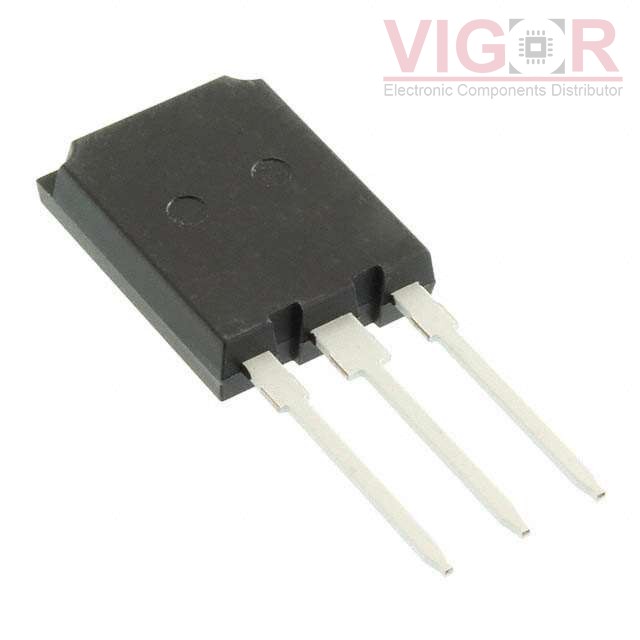

Image is for reference,
please contact us to get the real picture

Part No :

IKQ75N120CS6XKSA1

Manufacturer
IR (Infineon Technologies)
Description
IGBT 1200V 75A TO247-3-46
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
IKQ75N120CS6XKSA1 PDF
Availability
0 pieces
Unit Price
$17.29000

Current price of IKQ75N120CS6XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IKQ75N120CS6XKSA1 Specifications
Type Description
Series:TrenchStop™
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):150 A
Current - Collector Pulsed (Icm):300 A
Vce(on) (Max) @ Vge, Ic:2.15V @ 15V, 75A
Power - Max:880 W
Switching Energy:5.15mJ (on), 2.95mJ (off)
Input Type:Standard
Gate Charge:530 nC
Td (on/off) @ 25°C:34ns/300ns
Test Condition:600V, 75A, 4Ohm, 15V
Reverse Recovery Time (trr):440 ns
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:PG-TO247-3-46
