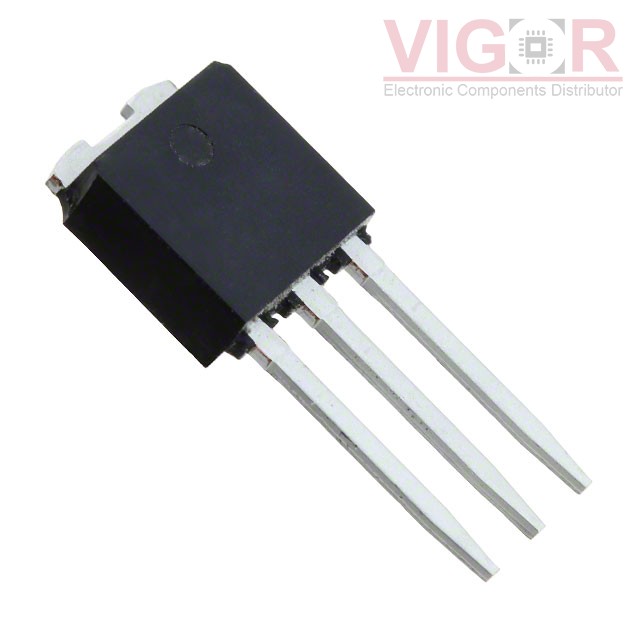

STGD6NC60H-1

Image is for reference,
please contact us to get the real picture

Part No :: STGD6NC60H-1

Manufacturer: STMicroelectronics

Description: IGBT N-CH 600V 7A IPAK

Catalog: Transistors - IGBTs - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 16 - Aug 20 2025

DataSheet: STGD6NC60H-1 PDF

Availability: 0 pieces

Unit Price: ~~$1.06000~~

Current price of STGD6NC60H-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGD6NC60H-1 Specifications

Type	Description
Series:	PowerMESH™
Package:	Tube
Part Status:	Active
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	15 A
Current - Collector Pulsed (Icm):	21 A
Vce(on) (Max) @ Vge, Ic:	2.5V @ 15V, 3A
Power - Max:	62.5 W
Switching Energy:	20µJ (on), 68µJ (off)
Input Type:	Standard
Gate Charge:	13.6 nC
Td (on/off) @ 25°C:	12ns/76ns
Test Condition:	390V, 3A, 10Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package:	IPAK (TO-251)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

FGI3040G2-F085

IGBT, 41A, 390V, N-CHANNEL

HOT

IXYH60N90C3

IGBT 900V 140A 750W C3 TO-247

HOT

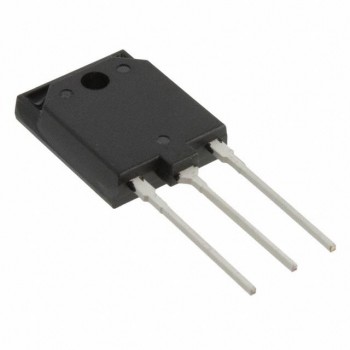

RJP60V0DPM-00#T1
