STGW50H65DFB2-4

STGW50H65DFB2-4

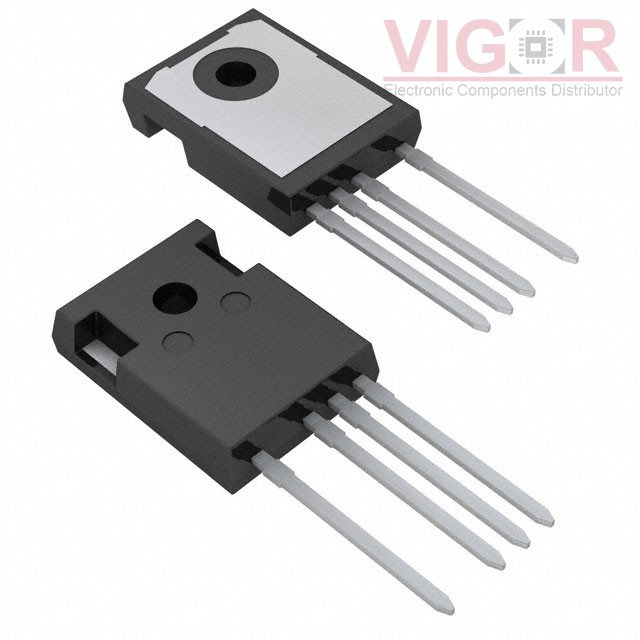

Image is for reference,
please contact us to get the real picture

Part No :

STGW50H65DFB2-4

Manufacturer
STMicroelectronics
Description
TRENCH GATE FIELD-STOP, 650 V, 5
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
STGW50H65DFB2-4 PDF
Availability
75 pieces
Unit Price
$4.78000

Current price of STGW50H65DFB2-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGW50H65DFB2-4 Specifications
Type Description
Series:HB2
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):86 A
Current - Collector Pulsed (Icm):150 A
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 50A
Power - Max:272 W
Switching Energy:629µJ (on), 478µJ (off)
Input Type:Standard
Gate Charge:151 nC
Td (on/off) @ 25°C:18ns/128ns
Test Condition:400V, 50A, 12Ohm, 15V
Reverse Recovery Time (trr):92 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-4
Supplier Device Package:TO-247-4
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
