IKQ40N120CH3XKSA1

IKQ40N120CH3XKSA1

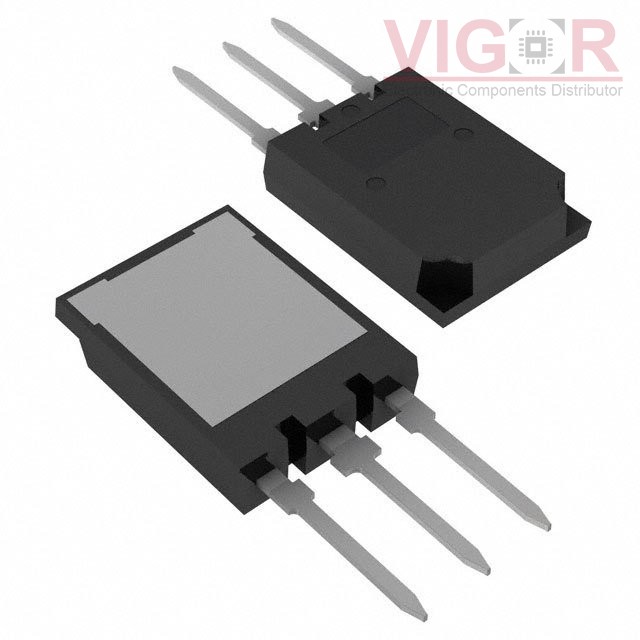

Image is for reference,
please contact us to get the real picture

Part No :

IKQ40N120CH3XKSA1

Manufacturer
IR (Infineon Technologies)
Description
IGBT 1200V 80A TO247-3-46
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
IKQ40N120CH3XKSA1 PDF
Availability
3 pieces
Unit Price
$8.91000

Current price of IKQ40N120CH3XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IKQ40N120CH3XKSA1 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:2.35V @ 15V, 40A
Power - Max:500 W
Switching Energy:3.3mJ (on), 1.3mJ (off)
Input Type:Standard
Gate Charge:190 nC
Td (on/off) @ 25°C:30ns/300ns
Test Condition:400V, 40A, 12Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:PG-TO247-3-46
