STGD5H60DF

STGD5H60DF

Image is for reference,

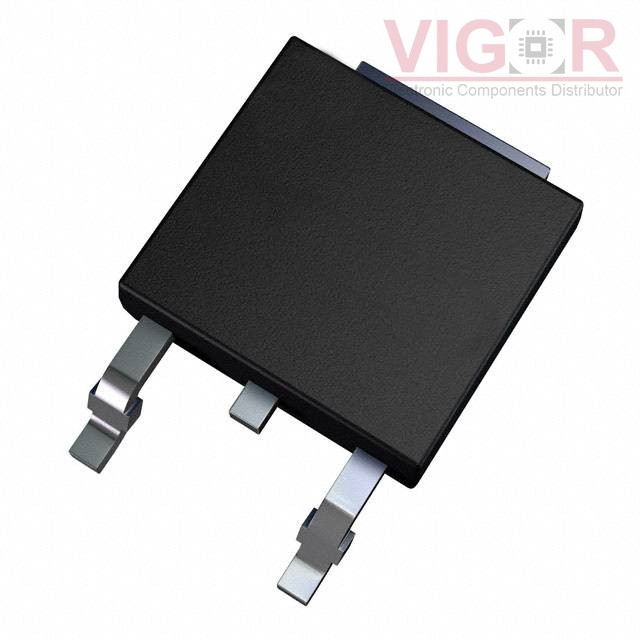

please contact us to get the real picture

Part No :

STGD5H60DF

Manufacturer
STMicroelectronics
Description
TRENCH GATE FIELD-STOP IGBT, H S
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 21 - Aug 25 2025
DataSheet
STGD5H60DF PDF
Availability
0 pieces
Unit Price
$1.06000

Current price of STGD5H60DF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGD5H60DF Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):10 A
Current - Collector Pulsed (Icm):20 A
Vce(on) (Max) @ Vge, Ic:1.95V @ 15V, 5A
Power - Max:83 W
Switching Energy:56µJ (on), 78.5µJ (off)
Input Type:Standard
Gate Charge:43 nC
Td (on/off) @ 25°C:30ns/140ns
Test Condition:400V, 5A, 47Ohm, 15V
Reverse Recovery Time (trr):134.5 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:DPAK
