IXGF20N300

IXGF20N300

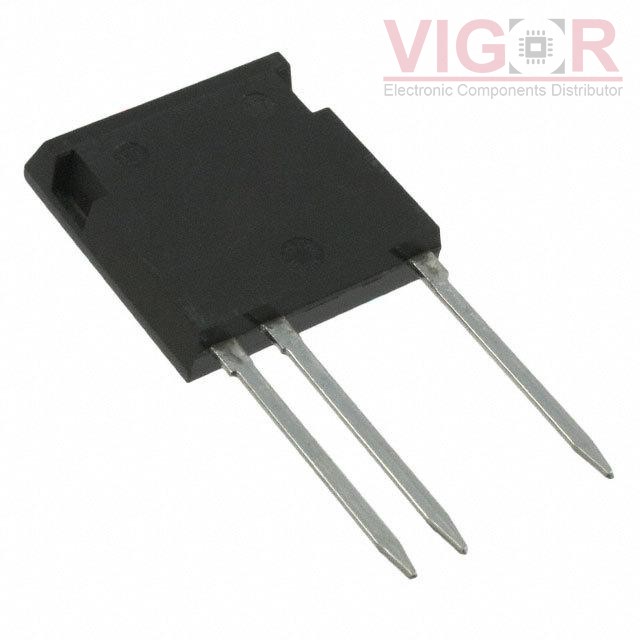

Image is for reference,
please contact us to get the real picture

Part No :

IXGF20N300

Manufacturer
Wickmann / Littelfuse
Description
IGBT 3000V 22A 100W I4-PAK
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
IXGF20N300 PDF
Availability
0 pieces
Unit Price
$37.12560

Current price of IXGF20N300 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXGF20N300 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):3000 V
Current - Collector (Ic) (Max):22 A
Current - Collector Pulsed (Icm):103 A
Vce(on) (Max) @ Vge, Ic:3.2V @ 15V, 20A
Power - Max:100 W
Switching Energy:-
Input Type:Standard
Gate Charge:31 nC
Td (on/off) @ 25°C:-
Test Condition:-
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:i4-Pac™-5 (3 Leads)
Supplier Device Package:ISOPLUS i4-PAC™
