APT80GA60LD40

APT80GA60LD40

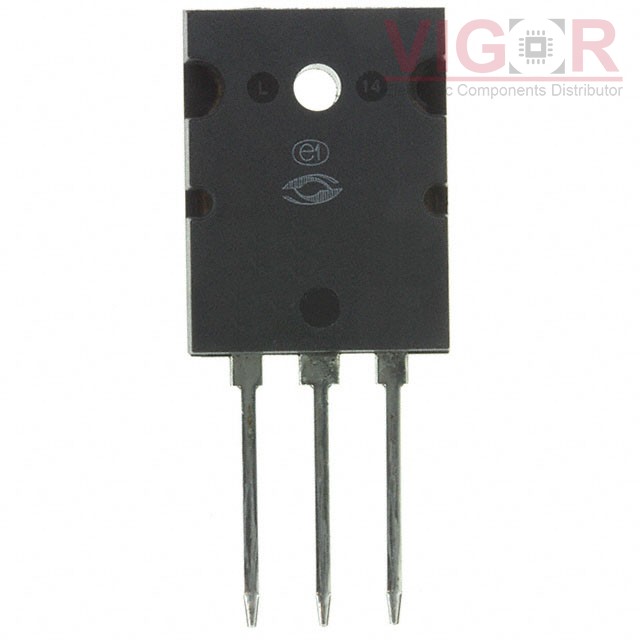

Image is for reference,
please contact us to get the real picture

Part No :

APT80GA60LD40

Manufacturer
Roving Networks / Microchip Technology
Description
IGBT 600V 143A 625W TO264
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
APT80GA60LD40 PDF
Availability
135 pieces
Unit Price
$10.10000

Current price of APT80GA60LD40 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APT80GA60LD40 Specifications
Type Description
Series:POWER MOS 8™
Package:Tube
Part Status:Active
IGBT Type:PT
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):143 A
Current - Collector Pulsed (Icm):240 A
Vce(on) (Max) @ Vge, Ic:2.5V @ 15V, 47A
Power - Max:625 W
Switching Energy:840µJ (on), 751µJ (off)
Input Type:Standard
Gate Charge:230 nC
Td (on/off) @ 25°C:23ns/158ns
Test Condition:400V, 47A, 4.7Ohm, 15V
Reverse Recovery Time (trr):22 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-264-3, TO-264AA
Supplier Device Package:TO-264
