IRG4PSC71KD

IRG4PSC71KD

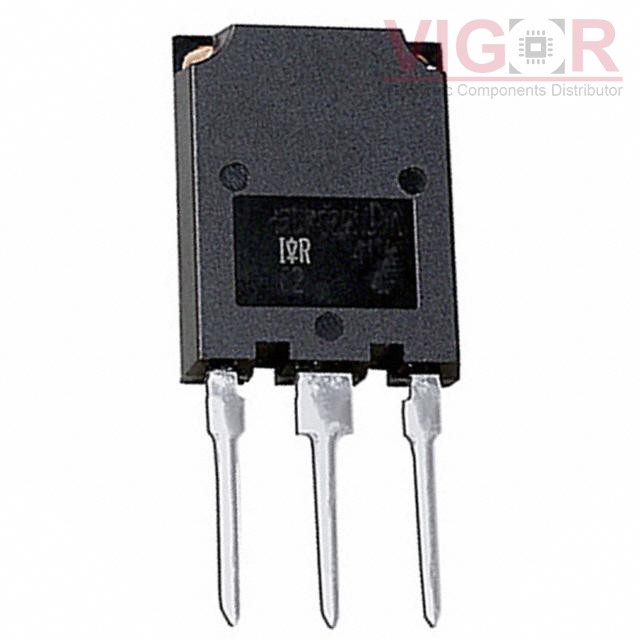

Image is for reference,
please contact us to get the real picture

Part No :

IRG4PSC71KD

Manufacturer
IR (Infineon Technologies)
Description
IGBT 600V 85A 350W SUPER247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
IRG4PSC71KD PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IRG4PSC71KD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRG4PSC71KD Specifications
Type Description
Series:-
Package:Bulk
Part Status:Obsolete
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):85 A
Current - Collector Pulsed (Icm):200 A
Vce(on) (Max) @ Vge, Ic:2.3V @ 15V, 60A
Power - Max:350 W
Switching Energy:3.95mJ (on), 2.33mJ (off)
Input Type:Standard
Gate Charge:340 nC
Td (on/off) @ 25°C:82ns/282ns
Test Condition:480V, 60A, 5Ohm, 15V
Reverse Recovery Time (trr):82 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-274AA
Supplier Device Package:SUPER-247™ (TO-274AA)
