IRG4IBC30FD

IRG4IBC30FD

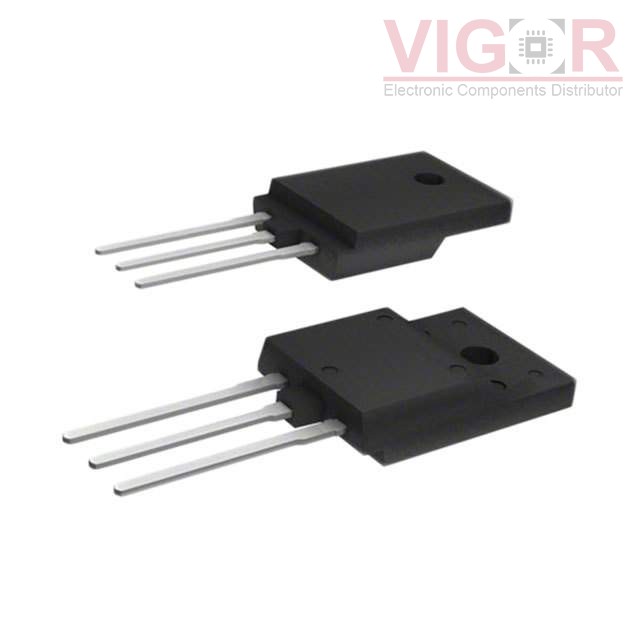

Image is for reference,
please contact us to get the real picture

Part No :

IRG4IBC30FD

Manufacturer
IR (Infineon Technologies)
Description
IGBT 600V 20.3A 45W TO220FP
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
IRG4IBC30FD PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IRG4IBC30FD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRG4IBC30FD Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):20.3 A
Current - Collector Pulsed (Icm):120 A
Vce(on) (Max) @ Vge, Ic:1.8V @ 15V, 17A
Power - Max:45 W
Switching Energy:630µJ (on), 1.39mJ (off)
Input Type:Standard
Gate Charge:51 nC
Td (on/off) @ 25°C:42ns/230ns
Test Condition:480V, 17A, 23Ohm, 15V
Reverse Recovery Time (trr):42 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220AB Full-Pak
