Current price of IBR115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | - |
Package: | Box |
Part Status: | Active |

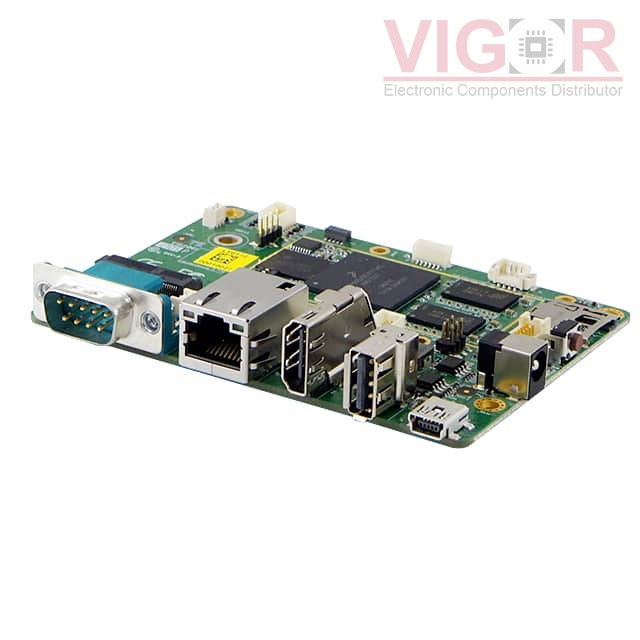

Core Processor: | ARM® Cortex®-A9, i.MX6DualLite |
Speed: | 1GHz |
Number of Cores: | 2 |
Power (Watts): | - |
Cooling Type: | Heat Sink |
Size / Dimension: | 3.94" x 2.83" (100.08mm x 71.88mm) |
Form Factor: | 2.5" |
Expansion Site/Bus: | Audio, GPIO, LVDS, M.2, PCIe, UART |
RAM Capacity/Installed: | 1GB/4GB |
Storage Interface: | eMMC, microSD |
Video Outputs: | HDMI, LVDS |
Ethernet: | GbE |
USB: | USB Type-A (1), USB OTG (1) |
RS-232 (422, 485): | 1 |
Digital I/O Lines: | - |
Analog Input:Output: | - |
Watchdog Timer: | Yes |
Operating Temperature: | -40°C ~ 85°C |
