Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 4715FS-23T-B20-D00 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | FS |
Package: | Box |
Part Status: | Active |
Voltage - Rated: | 230VAC |
Size / Dimension: | Square - 119mm L x 119mm H |
Width: | 38.00mm |
Air Flow: | 80.0 CFM (2.24m³/min) |
Static Pressure: | 0.130 in H2O (32.5 Pa) |
Bearing Type: | Ball |
Fan Type: | Tubeaxial |
Features: | - |
Noise: | 36.0dB |
Power (Watts): | 8.80W |
RPM: | 2300 RPM |
Termination: | 2 Terminals |
Ingress Protection: | - |
Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
Approval Agency: | CE, CSA, TUV, UL |
Weight: | 1.2 lbs (544.3 g) |

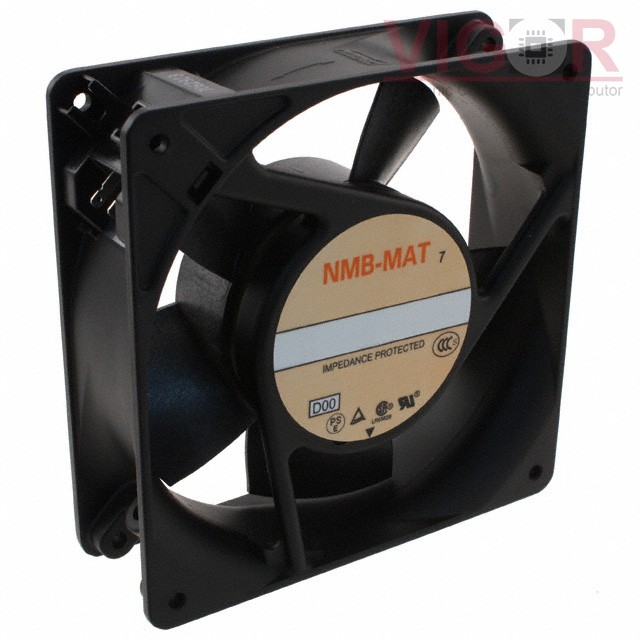

FAN AXIAL 119X38MM 230VAC TERM
