Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of FDA2-17251NBKT3F-L is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | HPLC, FDA2-17251 |
Package: | Bulk |
Part Status: | Active |
Voltage - Rated: | 115VAC |
Size / Dimension: | Rectangular/Rounded - 172mm L x 151mm H |
Width: | 51.00mm |
Air Flow: | 275.0 CFM (7.70m³/min) |
Static Pressure: | 0.768 in H2O (191.3 Pa) |
Bearing Type: | Ball |
Fan Type: | Tubeaxial |
Features: | - |
Noise: | 60.0dB(A) |
Power (Watts): | 27.00W |
RPM: | 3300 RPM |
Termination: | 2 Terminals |
Ingress Protection: | IP54 - Dust Protected, Water Resistant |
Operating Temperature: | -4 ~ 158°F (-20 ~ 70°C) |
Approval Agency: | CE, cURus, TUV |
Weight: | 1.9 lbs (861.8 g) |

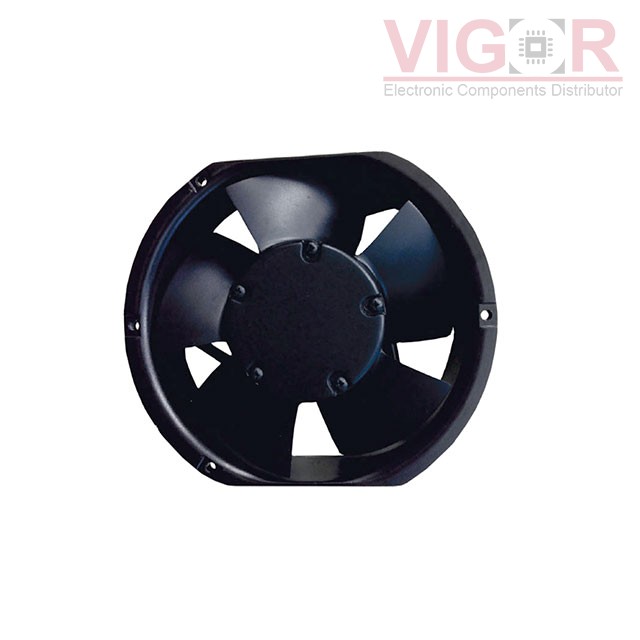

FAN AXIAL 172X51MM 115VAC TERM
