Current price of R3G250-RE07-07 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|

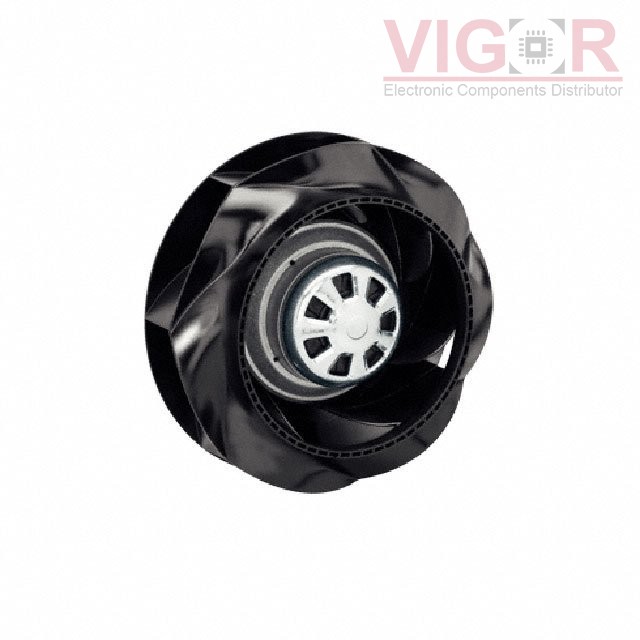

Series: | Green Tech RadiCal® R3G250RE |
Package: | Box |
Part Status: | Active |
Voltage - Rated: | 230VAC |
Size / Dimension: | Round - 255mm Dia |
Width: | 99.00mm |
Air Flow: | 842.2 CFM (23.58m³/min) |
Static Pressure: | - |
Bearing Type: | Ball |
Fan Type: | Motorized Impellers |
Features: | Electronic Commutation (EC) |
Noise: | 76.0dB(A) |
Power (Watts): | 170W |
RPM: | 2510 RPM |
Termination: | 2 Wire Leads |
Ingress Protection: | IP54 - Dust Protected, Water Resistant |
Operating Temperature: | -13 ~ 140°F (-25 ~ 60°C) |
Approval Agency: | CSA, UL, VDE |
Weight: | 3.9 lbs (1.8 kg) |
