Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 06038DA-12S-EU-D0 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | 06038DA |
Package: | Box |
Part Status: | Active |
Voltage - Rated: | 12VDC |
Size / Dimension: | Square - 60mm L x 60mm H |
Width: | 38.00mm |
Air Flow: | 66.4 CFM (1.86m³/min) |
Static Pressure: | 3.713 in H2O (925.0 Pa) |
Bearing Type: | Ball |
Fan Type: | Tubeaxial |
Features: | PWM Control, Speed Sensor (Tach) |
Noise: | 63.5dB(A) |
Power (Watts): | 19.8 W |
RPM: | 17000 RPM |
Termination: | 4 Wire Leads |
Ingress Protection: | - |
Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
Approval Agency: | UR, VDE |
Weight: | 0.271 lb (122.92 g) |

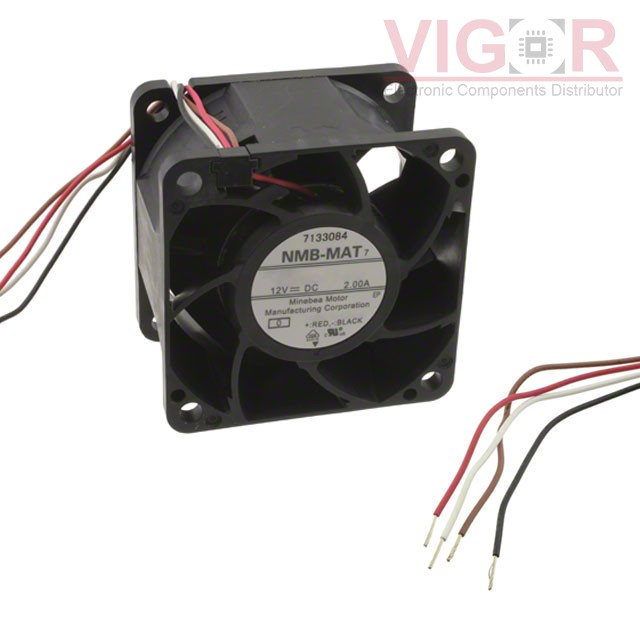

FAN AXIAL 60X38MM 12VDC WIRE
