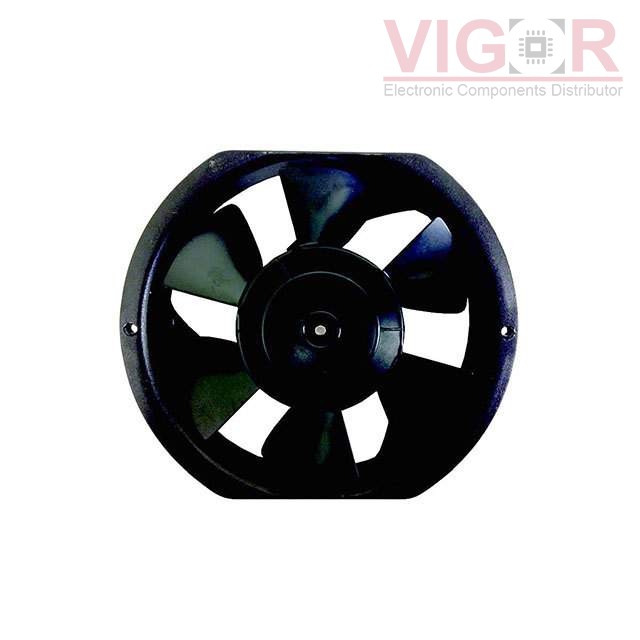

FDD1-17238DBAW4C

Image is for reference,
please contact us to get the real picture

Part No :: FDD1-17238DBAW4C

Manufacturer: Qualtek Electronics Corp.

Description: FAN AXIAL 172X38.5MM 24VDC WIRE

Catalog: DC Brushless Fans (BLDC)

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: FDD1-17238DBAW4C PDF

Availability: 0 pieces

Unit Price: ~~$75.67500~~

Current price of FDD1-17238DBAW4C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FDD1-17238DBAW4C Specifications

Type	Description
Series:	HPLC, FDD1-17238
Package:	Bulk
Part Status:	Active
Voltage - Rated:	24VDC
Size / Dimension:	Rectangular/Rounded - 172mm L x 151mm H
Width:	38.50mm
Air Flow:	210.0 CFM (5.88m³/min)
Static Pressure:	0.571 in H2O (142.2 Pa)
Bearing Type:	Ball
Fan Type:	Tubeaxial
Features:	Locked Rotor Sensor, Speed Sensor (Tach)
Noise:	52.0dB(A)
Power (Watts):	13 W
RPM:	2800 RPM
Termination:	4 Wire Leads
Ingress Protection:	IP54 - Dust Protected, Water Resistant
Operating Temperature:	-4 ~ 158°F (-20 ~ 70°C)
Approval Agency:	CE, cURus, TUV
Weight:	1.9 lbs (861.8 g)
