Current price of DC0351012V2B-BT0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | - |
Package: | Box |
Part Status: | Active |
Voltage - Rated: | 12VDC |
Size / Dimension: | Square - 35mm L x 35mm H |
Width: | 10.00mm |
Air Flow: | 5.5 CFM (0.154m³/min) |
Static Pressure: | 0.180 in H2O (44.8 Pa) |
Bearing Type: | Ball |
Fan Type: | Tubeaxial |
Features: | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
Noise: | 25.0dB(A) |
Power (Watts): | 480 mW |
RPM: | 8000 RPM |
Termination: | 4 Wire Leads |
Ingress Protection: | - |
Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
Approval Agency: | CE, cURus, TUV |
Weight: | 0.025 lb (11.34 g) |
FIXED IND 1.2UH 620MA 180 MOHM

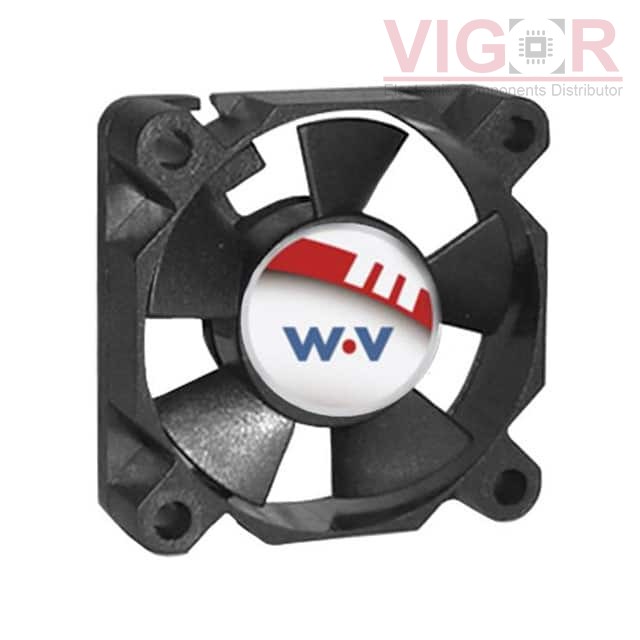

FAN 12VDC 35X10MM 4WIRES
