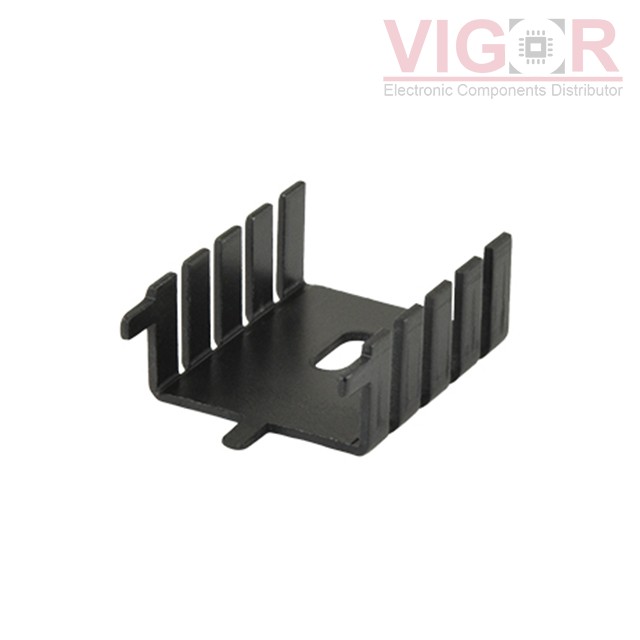

HSS-B20-0508H-01S

HSS-B20-0508H-01S

Image is for reference,
please contact us to get the real picture

Part No :

HSS-B20-0508H-01S

Manufacturer
CUI Devices
Description
HEATSINK TO-220 4.7W ALUMINUM
Catalog
Thermal - Heat Sinks
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
HSS-B20-0508H-01S PDF
Availability
840 pieces
Unit Price
$0.70000

Current price of HSS-B20-0508H-01S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HSS-B20-0508H-01S Specifications
Type Description
Series:HSS
Package:Bag
Part Status:Active
Type:Board Level, Vertical
Package Cooled:TO-220
Attachment Method:Bolt On and Board Mounts
Shape:Rectangular, Fins
Length:0.500" (12.70mm)
Width:1.000" (25.40mm)
Diameter:-
Fin Height:1.180" (29.97mm)
Power Dissipation @ Temperature Rise:4.7W @ 75°C
Thermal Resistance @ Forced Air Flow:5.87°C/W @ 200 LFM
Thermal Resistance @ Natural:15.83°C/W
Material:Aluminum
Material Finish:Black Anodized
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT ATS-02C-150-C2-R0

ATS-02C-150-C2-R0

HEATSINK 35X35X25MM L-TAB T766
HOT ATS-17C-02-C2-R0

ATS-17C-02-C2-R0

HEATSINK 40X40X12.7MM XCUT T766

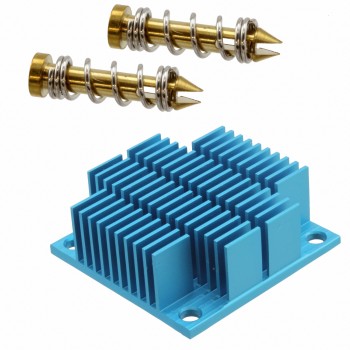

HOT ATS-13F-50-C1-R0
