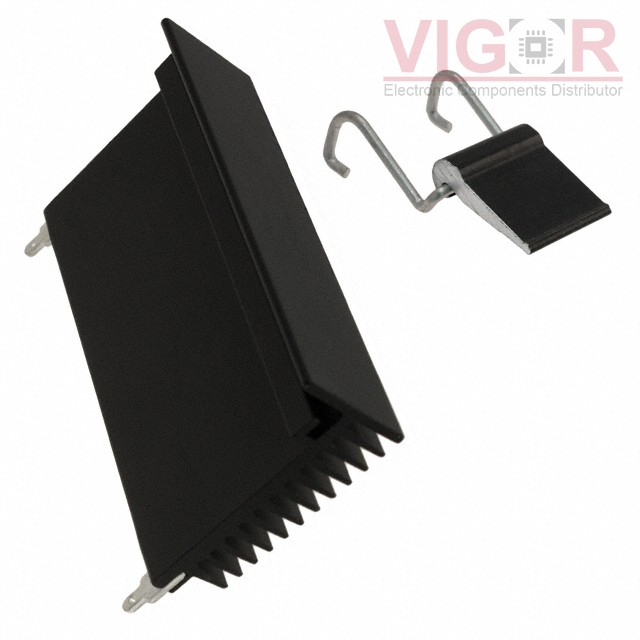

C247-075-3AE

Image is for reference,
please contact us to get the real picture

Part No :: C247-075-3AE

Manufacturer: Ohmite

Description: HEATSINK FOR TO-247 WITH 3 CLIPS

Catalog: Thermal - Heat Sinks

Shipped from: HK warehouse

Expected Shipping Date: Aug 08 - Aug 12 2025

DataSheet: C247-075-3AE PDF

Availability: 306 pieces

Unit Price: ~~$10.18000~~

Current price of C247-075-3AE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

C247-075-3AE Specifications

Type	Description
Series:	C
Package:	Box
Part Status:	Active
Type:	Board Level, Vertical
Package Cooled:	TO-247
Attachment Method:	3 Clips and PC Pin
Shape:	Rectangular, Fins
Length:	2.953" (75.00mm)
Width:	1.500" (38.10mm)
Diameter:	-
Fin Height:	0.710" (18.03mm)
Power Dissipation @ Temperature Rise:	2.5W @ 20°C
Thermal Resistance @ Forced Air Flow:	2.00°C/W @ 300 LFM
Thermal Resistance @ Natural:	-
Material:	Aluminum
Material Finish:	Black Anodized

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

ATS-12D-176-C2-R0

HEATSINK 35X35X15MM R-TAB T766

HOT

ATS-54190K-C1-R0

HEAT SINK 19MM X 19MM X 14.5MM

HOT

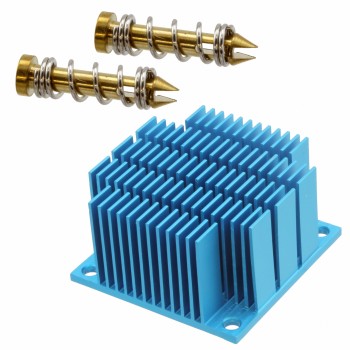

ATS-01A-71-C1-R0
